taraSMART
- Tried and tested technology, modern design
- Possible to route connectors such as HDMI, DVI, or network adaptors
- Quick and easy assembly
Product description

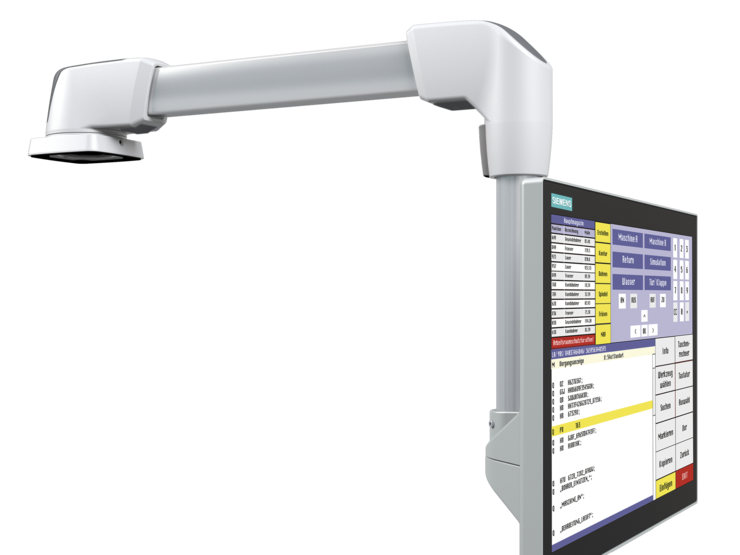

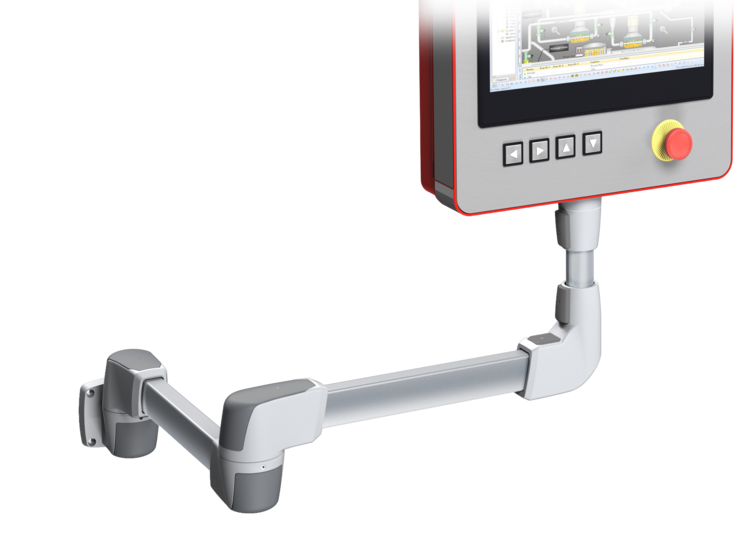

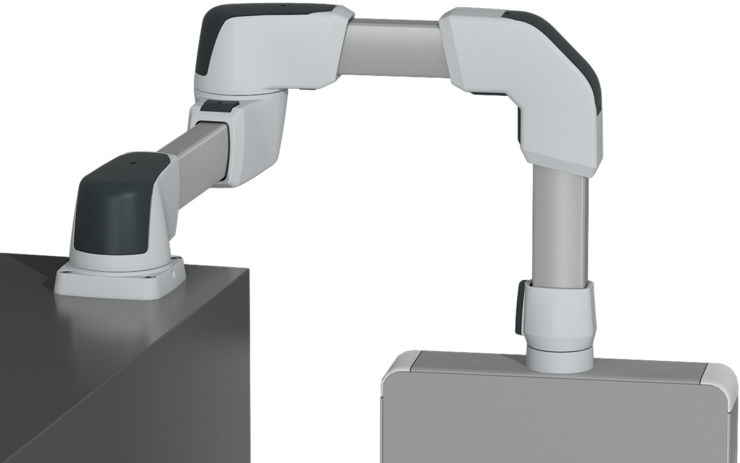

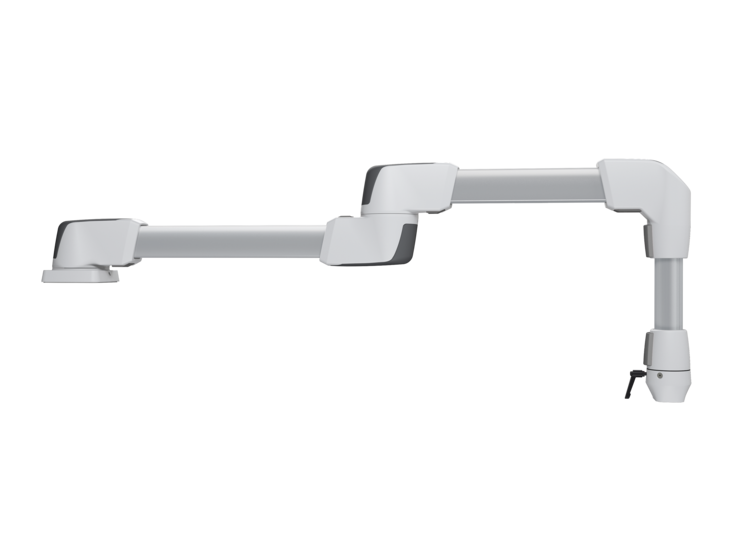

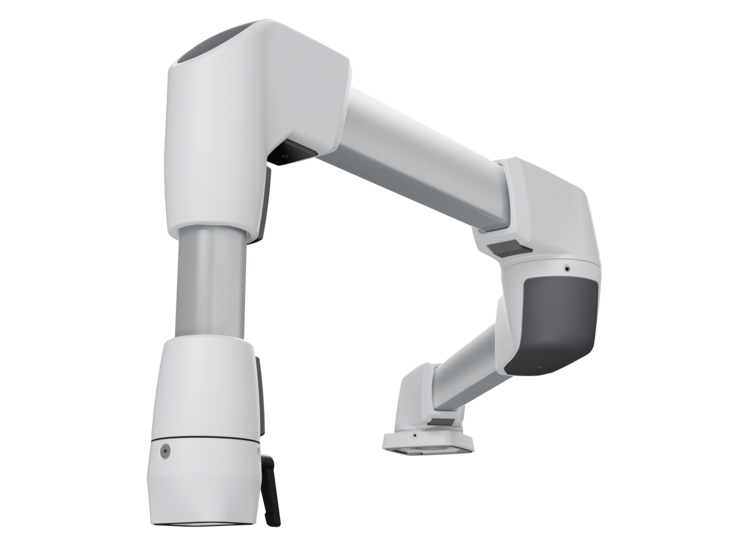

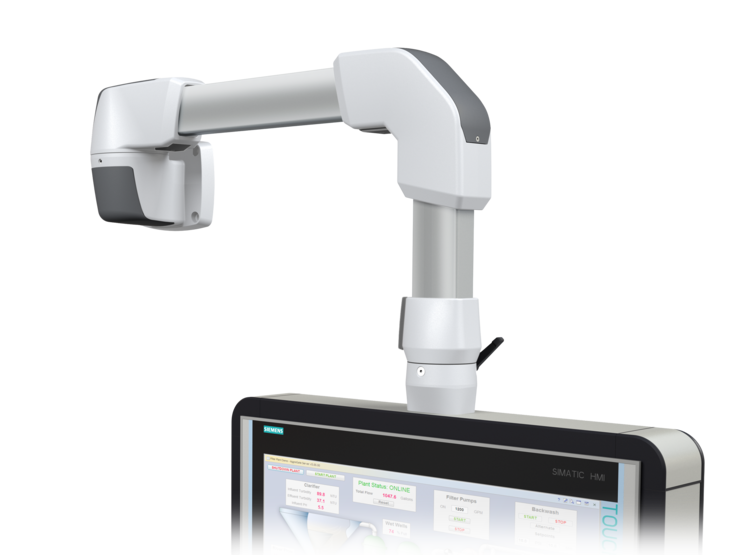

taraSMART is a sophisticated suspension arm system for modern machine construction. The perfect symbiosis of technical design and sophistication. It offers sufficient space for routing HDMI or DVI cables, or network plugs. Installation is quick and easy, thanks to the familiar, tried and tested technology. The coupling variants of the system enable the connection of both narrow and deep control enclosures. Thanks to the Ø48 bracket, the straightforward connection of panel PCs with a round tube frame can take place without additional adapters.
Product overview
| Image | Article name | Type | Article number | Length | Width | Height | Request | Details |
|---|---|---|---|---|---|---|---|---|

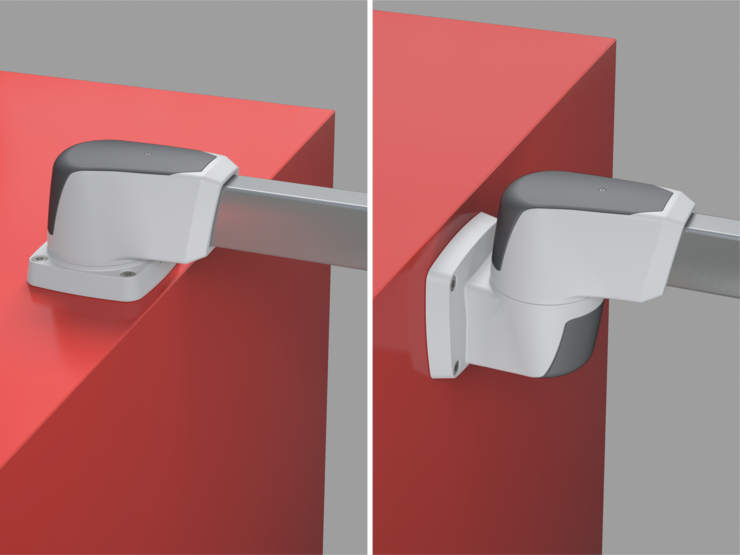

 | taraSMART | Socket joint | 141.005.000 | - | - | - | Details | |
 | taraSMART | Socket joint, vertical | 141.005.001 | - | - | - | Details | |
 | taraSMART | Wall joint | 141.010.000 | - | - | - | Details | |
 | taraSMART | Wall joint, vertical | 141.010.001 | - | - | - | Details | |

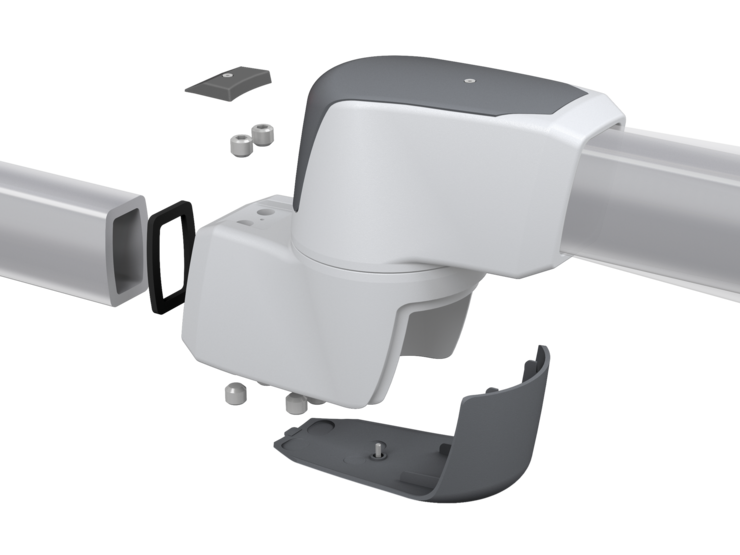

 | taraSMART | Intermediate joint | 141.015.000 | - | - | - | Details | |

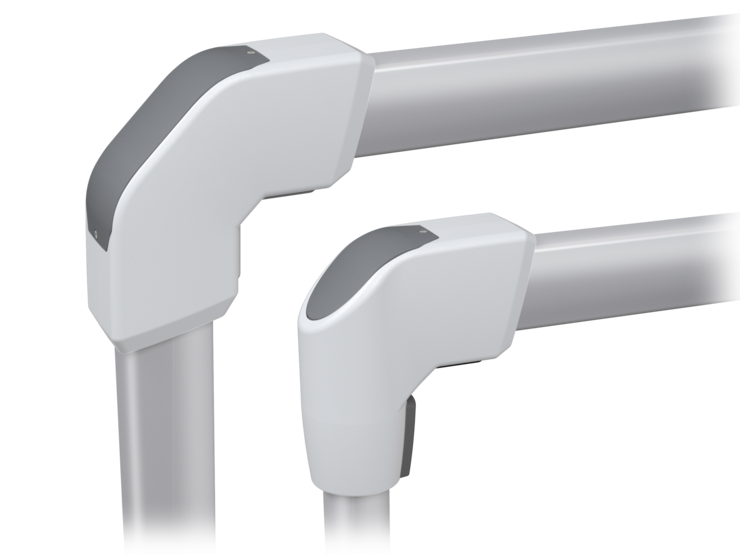

 | taraSMART | Elbow profile | 141.020.000 | - | - | - | Details | |

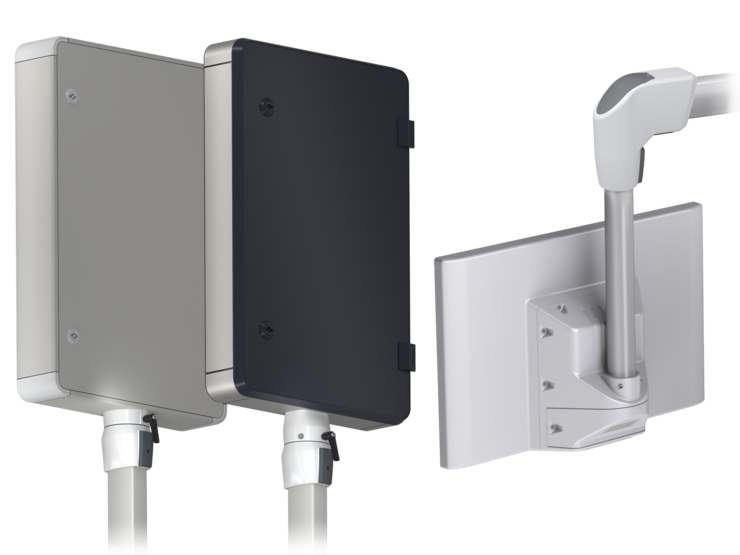

 | taraSMART | Elbow Ø48 | 141.020.001 | - | - | - | Details | |

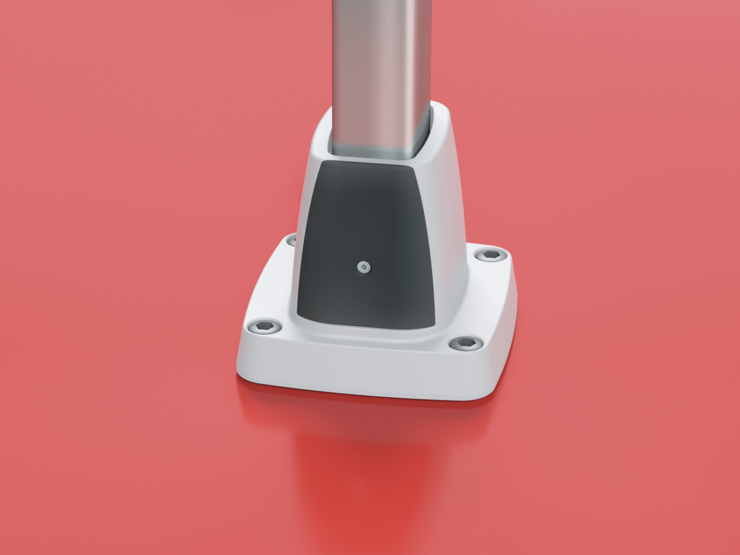

 | taraSMART | Base | 141.030.000 | - | - | - | Details |
Technical data
| Principle | Economic, compact and elegant designer suspension arm system for light to medium loads |
| Additional information | Connection of HMI/control enclosures from leading manufacturers with a round tube frame (such as Siemens, Beckhoff, B&R) possible |
| The generous cable routing offers an optimum connection with all interfaces, sufficient space is available for a range of cables and connectors | |
| Horizontal alignment of the complete system assembly possible at all joints! | |
| Material/coating | Diecast aluminium alloy, powder coated RAL 7035 light grey |
| Optional: Special colours | |
| Support profiles: Extruded aluminium profile, silver anodised | |
| Ø48 round tubes: steel, silver coated | |
| Covers: Thermoplast, RAL 7016, anthracite grey | |
| Gasket | Chloroprene O-ring gasket (CR) |
| Cable routing | Suitable for HDMI, patch cables, DVI, USB, cold-device plugs, etc. |
| Ingress protection | IP 54 / EN 60529 |
| ROLEC service | Avail of our Full Service Offer for installation-ready products |
| Configuration | To configure this product, please use our practical taraSMART configurator |
Application examples
Frequently Asked Questions
Yes. ROLEC offers a range of options for customising the colour of your enclosures, HMI enclosures and support arm systems.
Depending on the application, the following options are available, amongst others:
• Powder coatings in almost all RAL colours
• 2K wet paint finishes
• Highly weather-resistant coatings
• Surface treatments such as SurTec 650
The most suitable coating depends on the environmental conditions and your design requirements.
Yes. We are happy to provide you with a sample of our products on request.
In addition, we can assist you with the development of prototypes and manufacture these, including machining, labelling or customised features. This allows the fit and function to be reliably tested even before series production begins.
Yes. Given the wide range of enclosure series, materials and configuration options available, we would definitely recommend a personal consultation.
Our experts will help you choose the right enclosure solution and support you every step of the way, from the initial idea to the finished product. In many countries, we also offer on-site consultations. Find your personal contact here.
Yes. Thanks to their modular design, ROLEC support arm systems can be extended, modified or adapted to new requirements at any time.
This makes modernisation easier and protects your investment in the long term.
Yes. ROLEC support arm systems are based on a modular design and can be customised to suit your specific application.
Possible configurations include, amongst others:
• Various tube lengths
• Wall, floor or machine mountings
• Angle and coupling elements
• Different extension arms
• Customised combinations of several support arm segments
• How can control panels be positioned ergonomically?
Thanks to the modular joint and coupling elements, control panels can be flexibly aligned and adapted to the respective workstation. This enables ergonomic operation and significantly improves user comfort. Please feel free to use our handy support arm configurator.
Yes. Many ROLEC mounting arm systems can also be combined with enclosures or control units from other manufacturers.
Depending on the application, VESA mounts or customised adapter solutions are available, for example for 48 mm diameter round tubing. We would be happy to check the compatibility of your existing components.
The ROLEC support arm systems are perfectly matched to the company’s HMI enclosure ranges.
These include, amongst others:
• profiPANEL
• multiPANEL
• profiCASE
• commandCASE
Depending on the enclosure series, suitable mounting solutions are available for wall, floor-standing or support-arm mounting.
Yes. ROLEC cable support arm systems are designed so that cables can be easily installed and, if necessary, added to or replaced at a later date.
This makes it particularly efficient to carry out extensions or maintenance work.
The cable passages in ROLEC’s support arm systems provide ample space for numerous supply and data cables.
Depending on the system, the following cables, amongst others, can be routed safely:
- Power supply
- Ethernet
- Profinet
- USB
- HDMI
- DVI
- DisplayPort
- Fieldbus cables
The maximum load capacity depends on the selected support arm system, the boom length and the specific installation situation.
ROLEC offers solutions for both lightweight control units and heavy-duty HMI and industrial PC systems. Our experts will assist you in selecting the appropriate support arm configuration and will verify the permissible loads for your application.
Yes. The profiPLUS 50 and profiPLUS 70 support arm systems feature an integrated equipotential bonding system across all system components. This ensures a permanently safe electrical connection throughout the entire support arm system – without the need for additional earthing cables between the individual elements. For the protection of people and machinery.
ROLEC offers perfectly coordinated HMI enclosures and support arm systems, all from a single source.
Depending on the application, the following systems are used:
• profiPLUS 50 – designer support arms for light to medium loads
• profiPLUS 70 – designer support arms for medium to heavy loads
• taraSMART – modern support arm system with integrated cable routing
• taraPLUS – a cost-effective solution for numerous industrial applications
• QUADRO 50 – a robust support arm system for medium loads
• QUADRO 80 – a robust support arm system for heavy loads
Our support arm systems enable safe cable routing, high stability and ergonomic positioning of control units. We would be happy to assist you in selecting the right combination of enclosure and support arm.
