aluFACE
- Fixed or hinged front frames with recessed front panels
- Models with separate terminal compartment
- Range of options including locks, hinges and handle bars
Product description

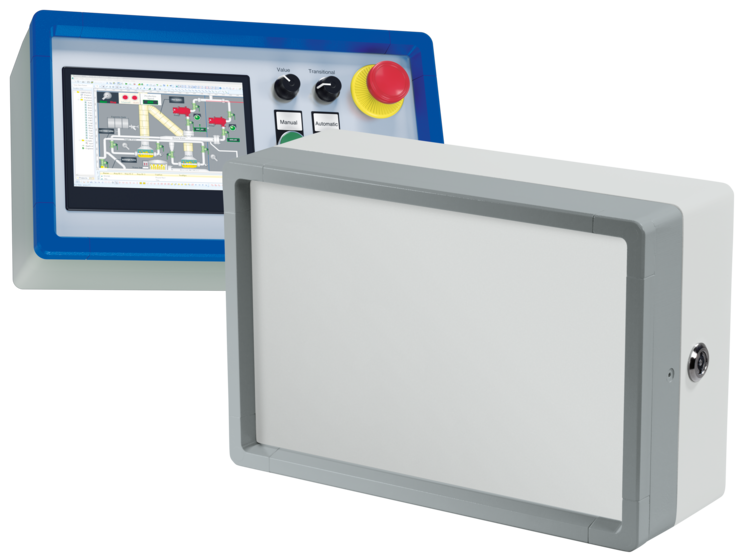

aluFACE is a robust and highly versatile range of command and control enclosures which feature fixed or hinged front sections. The enclosures are ideal all types of industrial controls and display technology.

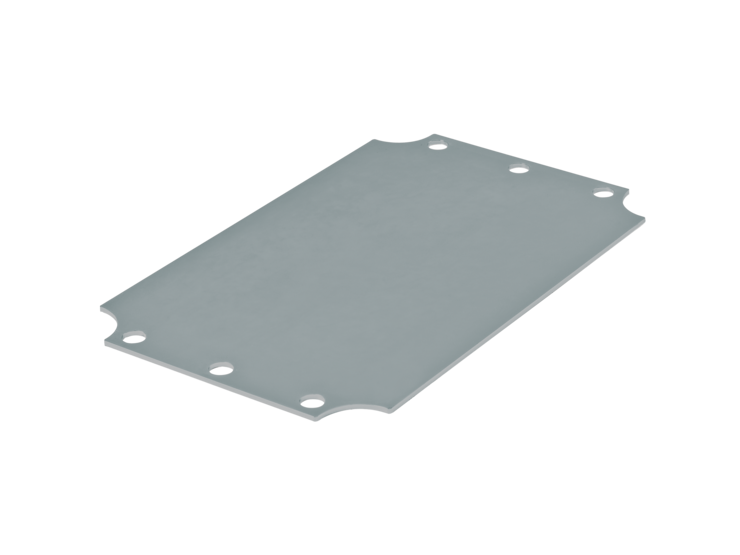

The aluFACE range is available in six different versions with diecast aluminium base sections and diecast or extruded frame lids. The enclosures are supplied with an anodised aluminium front panel which is recessed to protect controls and keypads. Internal threaded screw bosses are provided for fixing PCBs, support rails, mounting plates etc. The larger enclosures in the range can be mounted to our suspension arm systems.
We can supply aluFACE enclosures fully customised to your requirements.
Product overview

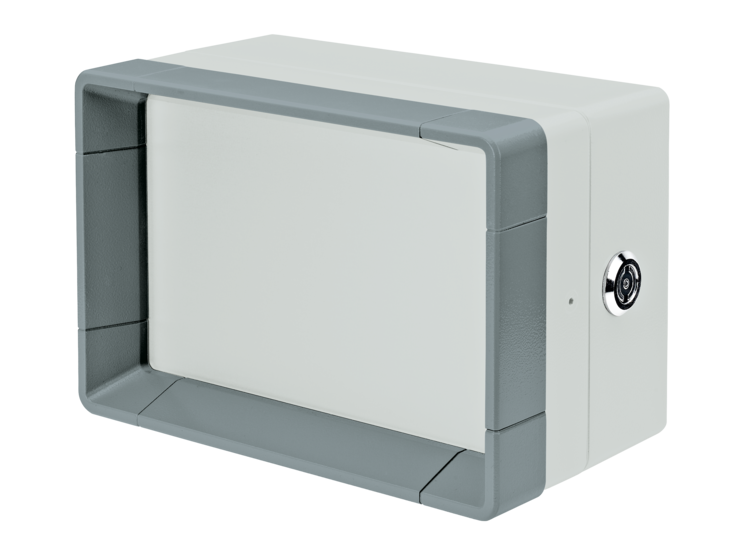

aluFACE range KSE: Raised framework, two-piece lid

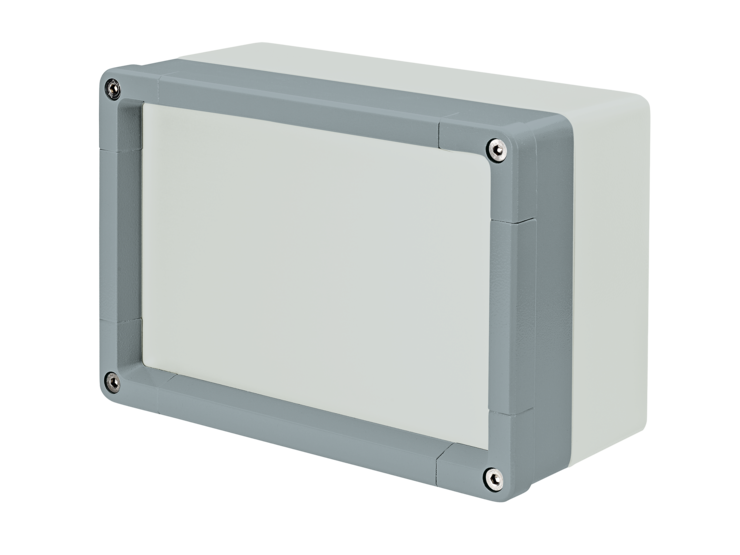

aluFACE range KCE: Flat framework, two-piece lid

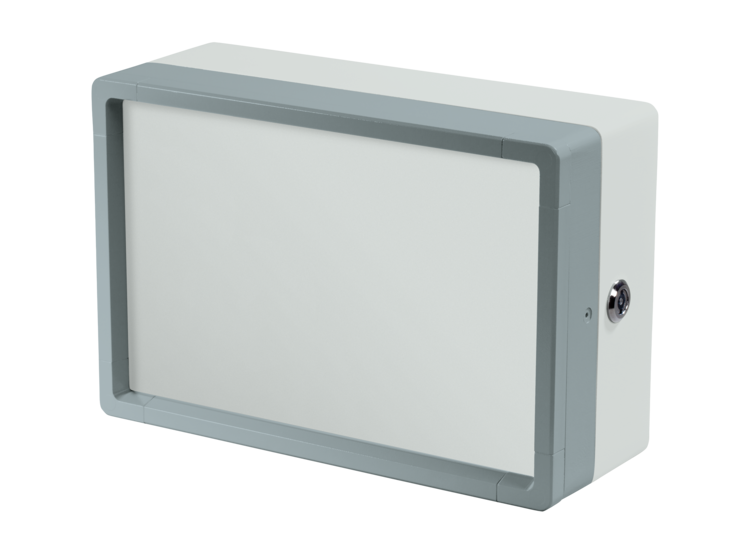

aluFACE range KE: Flat framework, single-piece aluminium frame

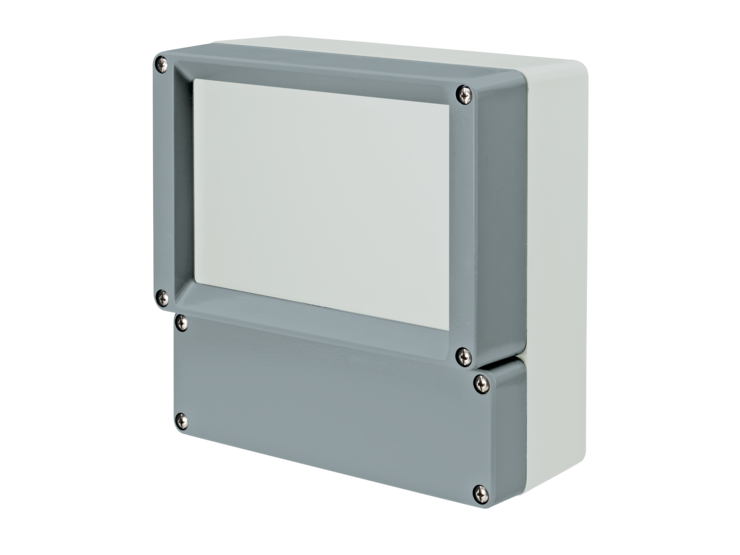

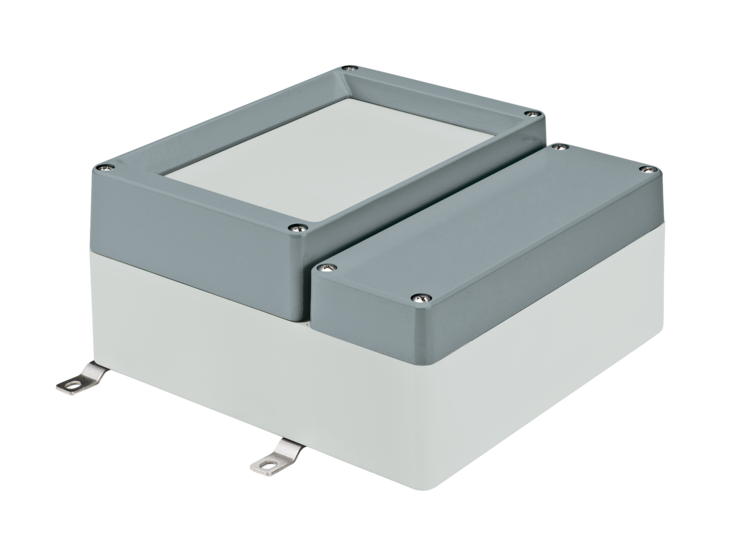

aluFACE range KTE: Secure connection technology in a connection space opened separately

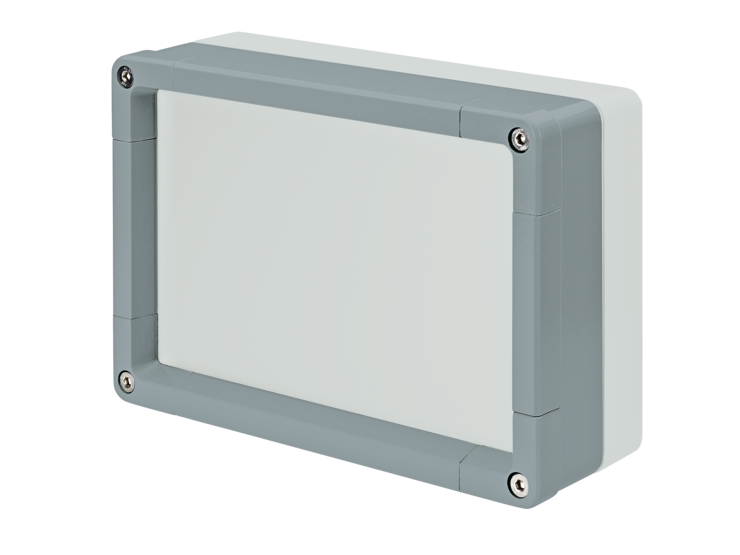

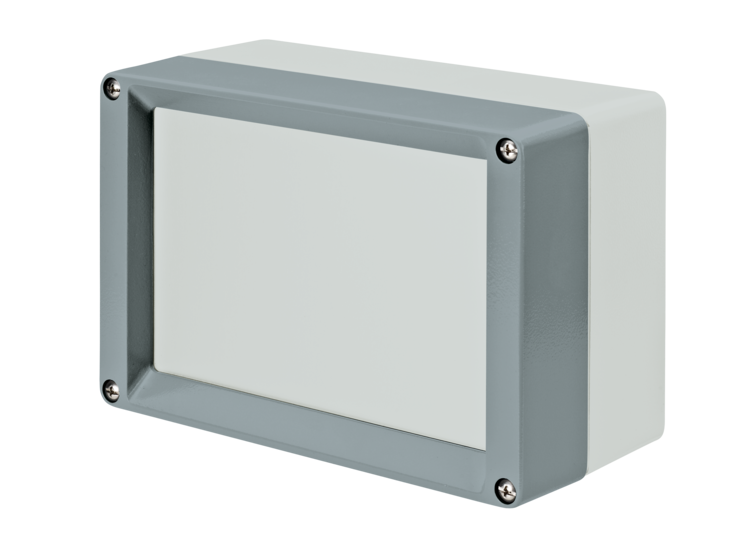

aluFACE range KVE: Flat framework, two-piece lid, screw fastened

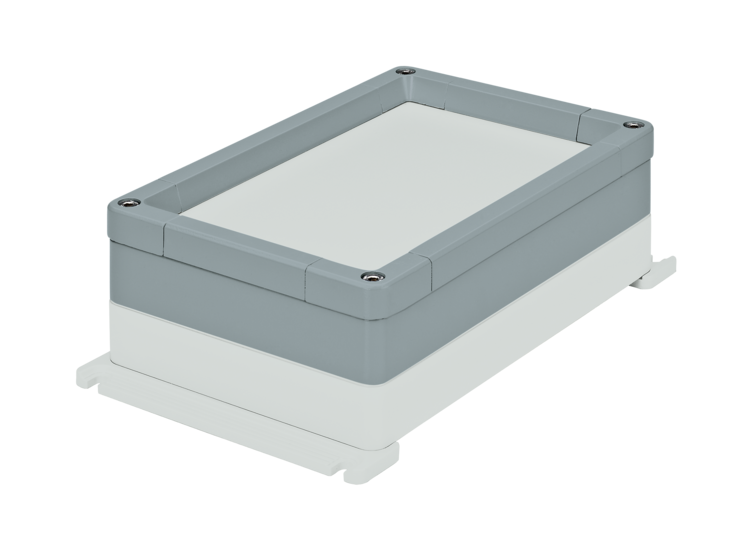

aluFACE range KVF: Flat framework, flat bottom, screw fastened
| Image | Article name | Type | Article number | Length | Width | Height | Request | Details |
|---|---|---|---|---|---|---|---|---|
 | aluFACE | KSE 160 | 115.160.000 | 6.299 | 6.299 | 5.118 | Details | |
 | aluFACE | KSE 162 | 115.162.000 | 9.449 | 6.299 | 5.118 | Details | |
 | aluFACE | KSE 164 | 115.164.000 | 12.598 | 6.299 | 5.118 | Details | |
 | aluFACE | KSE 166 | 115.166.000 | 18.898 | 6.299 | 5.118 | Details | |
 | aluFACE | KSE 200 | 115.200.000 | 7.874 | 7.874 | 5.906 | Details | |
 | aluFACE | KSE 202 | 115.202.000 | 11.811 | 7.874 | 5.906 | Details | |
 | aluFACE | KSE 204 | 115.204.000 | 15.748 | 7.874 | 5.906 | Details | |
 | aluFACE | KSE 240 | 115.240.000 | 9.449 | 9.449 | 5.906 | Details | |
 | aluFACE | KSE 242 | 115.242.000 | 14.173 | 9.449 | 5.906 | Details | |
 | aluFACE | KSE 244 | 115.244.000 | 18.898 | 9.449 | 5.906 | Details | |
 | aluFACE | KSE 320 | 115.320.000 | 12.598 | 12.598 | 5.906 | Details | |
 | aluFACE | KSE 322 | 115.322.000 | 18.898 | 12.598 | 5.906 | Details | |
 | aluFACE | KSE 324 | 115.324.000 | 25.197 | 12.598 | 5.906 | Details |
Technical data
| Enclosure sizes | 6 variants - 66 dimensions |
| KTE range: Secure connection technology in connection space (opened independently), both chambers can be separated, various lid variants, ingress protection IP 66 | |
| KE range: Flat framework, single-piece aluminium frame, front plate without visible screws, aluminium front plate, easy to assembly, ingress protection IP 66 | |

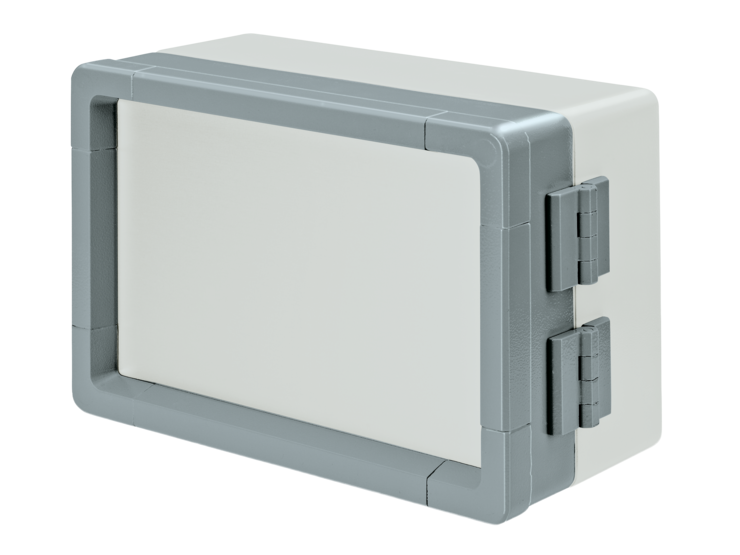

| KSE range: High framework, two-piece lid, with lock and hinges, ingress protection IP 65 | |
| KCE range: High framework, two-piece lid, with lock and hinges, ingress protection IP 65 | |
| KVE range: Flat framework, two-piece lid, inexpensive screwed version, ingress protection IP 65 | |
| KVF range: Flat framework, flat bottom, two-piece lid, inexpensive screwed version, ingress protection IP 65 | |
| Additional info | |
| Enclosure | Diecast aluminium |
| EN AC 44300/EN AC-44200 (DIN EN 1706) | |
| 1° mould slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom. | |
| Front door (KSE/KCE range): Extruded aluminium profiles | |
| Diecast zinc corner pieces with standard front plate: Aluminium 3 mm, Al Mg 1, silver anodised | |
| Optional: Finished front plates, bored, stamped, engraved or printed | |

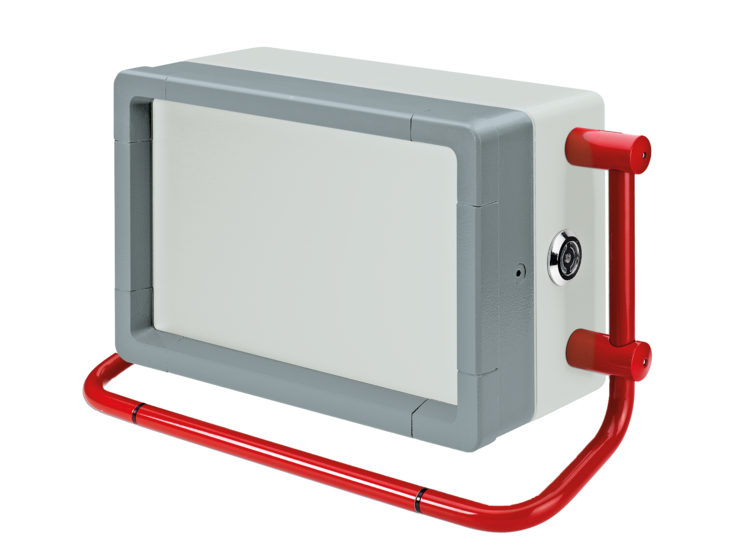

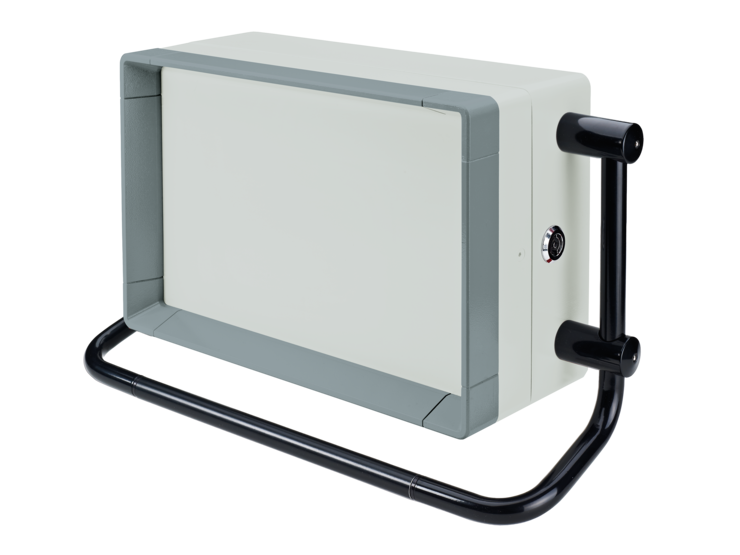

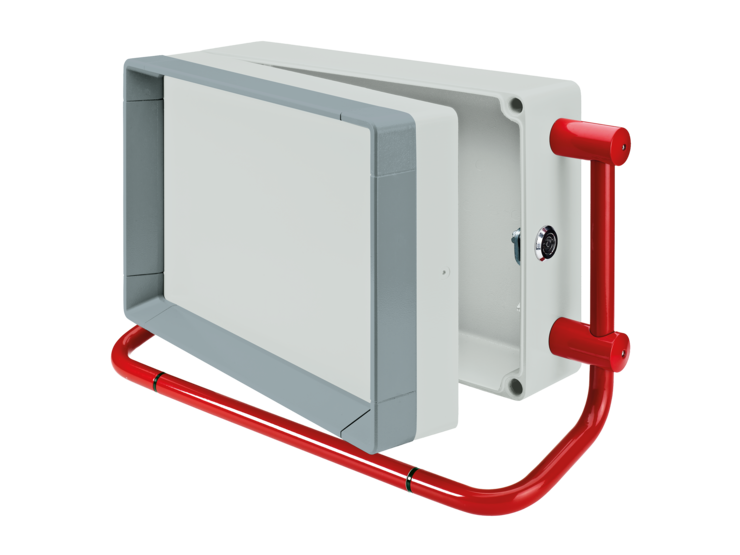

| Optional: Steel pipe handle frame, powder coated, RAL 3020 or RAL 9005 | |
| Closure (KSE/KCE range): Hinges and locks on the narrow sides (side W), optionally also on the long sides (side L) | |

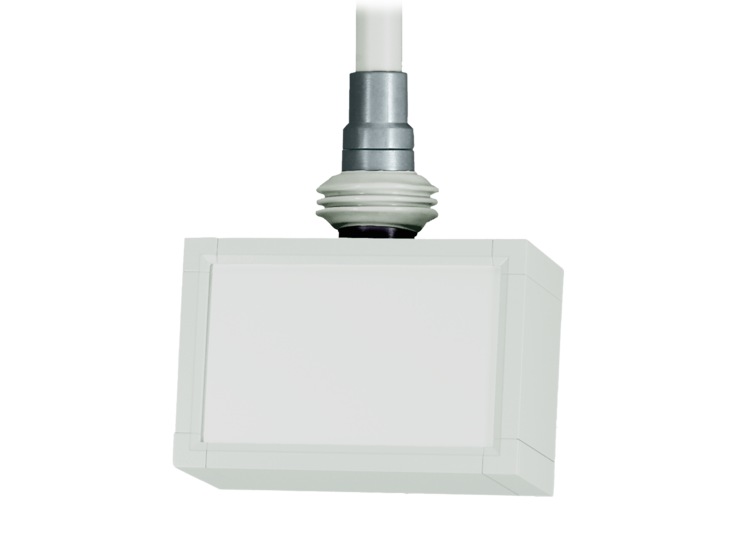

| Fastening | With ROLEC suspension arm system taraPLUS and profiPLUS or attached to wall |
| Internal mounting | Fastening thread M6 on the enclosure floor |
| Ingress protection | IP 65, IP 66 / EN 60529 |
| Gasket | Depends on variant and size: Chloroprene O-ring gasket (CR) |
| or TPE moulded gasket, silicone-free | |
| Surface | Powder coating |
| Enclosure: RAL 7035 | |
| Front frame: RAL 7040 | |
| Optional: Special colours | |
| Customising | Learn more about our full customising service for installation-ready enclosures |
Frequently Asked Questions
The required protection rating depends on the environmental conditions to which the enclosure is exposed. Depending on the product, ROLEC offers protection ratings ranging from IP 54 to IP 69K, providing solutions for a wide variety of applications – from dusty production environments to high-pressure cleaning.
ROLEC enclosures are designed for continuous use in demanding industrial environments. Their mechanical robustness is described, amongst other things, by the IK protection rating and depends on the material, design and application.
We would be happy to recommend the right enclosure solution for your mechanical requirements.
Yes. On request, we can supply your housing fully machined and ready for assembly.
Our range of services includes, amongst other things:
• Drilling, milling and thread cutting
• Cut-outs for displays and control elements
• Integration of HMI components
• Engraving, screen printing and digital printing
• Customised surface finishes
This means you receive a complete, ready-to-install solution from a single source.
The durability of an enclosure depends on the material used and the specific operating conditions.
Factors that influence this include, for example:
• Chemicals and cleaning agents
• UV radiation
• Moisture and salt water
• Temperature
• Mechanical stress
Your personal contact will help you select the right material for your application.
Depending on the product, various approvals and certifications are available.
These include, amongst others:
• IP protection ratings
• UL approval
• DNV approval
• CSA approval
We would be happy to check on a case-by-case basis which certifications are available for your chosen product.
Yes. ROLEC offers a range of options for customising the colour of your enclosures, HMI enclosures and support arm systems.
Depending on the application, the following options are available, amongst others:
• Powder coatings in almost all RAL colours
• 2K wet paint finishes
• Highly weather-resistant coatings
• Surface treatments such as SurTec 650
The most suitable coating depends on the environmental conditions and your design requirements.
Yes. In addition to our extensive standard range, we offer numerous options for customisation.
Our product ranges, for example, are particularly flexible:
• multiPANEL
• profiPANEL
• mobilCASE
Furthermore, on a case-by-case basis, we also produce project-specific non-standard sizes and bespoke designs.
Yes. Many ROLEC enclosures are ideal for use with membrane keyboards, as they already feature a recessed area in the lid designed to accommodate them.
On request, we can supply your chosen enclosure complete with a precisely fitted membrane keyboard and other components such as display panels or front films. All components are tailored exactly to your application and professionally assembled.
Yes. ROLEC offers a range of methods for permanent, high-quality marking of your enclosures.
These include, amongst others:
• Screen printing
• Digital printing
• Engraving
• Company logos and customised markings
The marking is tailored precisely to your corporate design and technical requirements.
Yes. Given the wide range of enclosure series, materials and configuration options available, we would definitely recommend a personal consultation.
Our experts will help you choose the right enclosure solution and support you every step of the way, from the initial idea to the finished product. In many countries, we also offer on-site consultations. Find your personal contact here.
Yes. In addition to an extensive standard range, ROLEC also develops and manufactures bespoke enclosure solutions for a wide variety of applications.
Depending on the project, we can provide, amongst other things:
• Customised machining
• Non-standard dimensions
• Special colours and finishes
• Customised labelling
• Integration of control elements and displays
• Complete, ready-to-install solutions
Even for small batch sizes, we work with you to develop a solution that is precisely tailored to your requirements.
Our HMI/IPC enclosures are designed for the integration of a wide range of commercially available panel PCs and control panels.
These include systems from, amongst others:
• Beckhoff
• B&R
• Siemens
• Phoenix Contact
• Allen-Bradley
• ASEM
Many other manufacturers’ products can also be integrated without any problems. We would be happy to check the compatibility of your panel and recommend the most suitable enclosure solution.
The lead time depends on the enclosure series selected and the extent of the required finishing. Many standard enclosures are available at short notice. Customised solutions involving machining, labelling or assembly may take slightly longer, depending on the project.
Thanks to our manufacturing facilities in Germany and efficient production processes, we are also able to complete bespoke projects at short notice. We would be happy to provide you with the delivery time for your chosen specification.
Yes. On request, ROLEC can provide you with much more than just an empty housing.
Among other things, we take care of:
• mechanical machining
• assembly of components
• fitting of display panels
• integration of membrane keyboards
• assembly of HMI components
• customised labelling and surface finishes
You’ll receive a complete, ready-to-install solution that’s precisely tailored to your application. This reduces assembly effort, saves time and means you benefit from a single point of contact throughout the entire project.

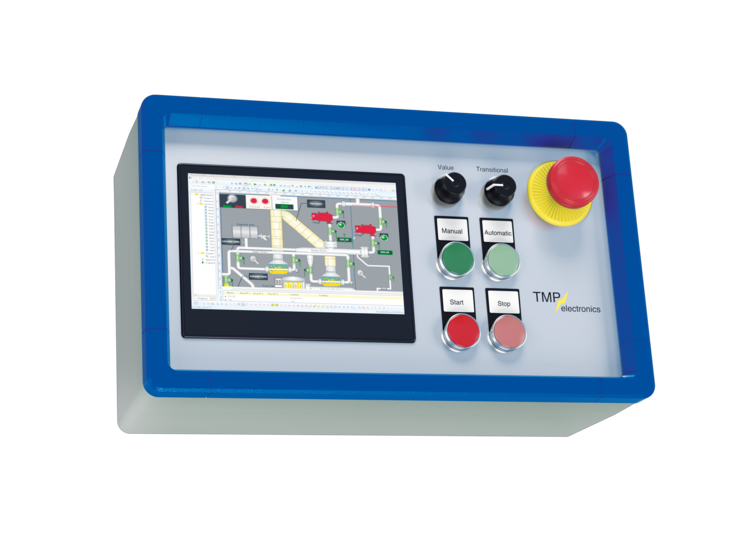

Yes. Many ROLEC enclosures have been specifically designed for the integration of displays, touchscreens and HMI components.
On request, we can handle the entire mechanical machining process, including the display cut-out, mounting, display panel and membrane keypad. This provides you with a complete, ready-to-install solution that is perfectly tailored to your operating concept.
Yes. We are happy to provide you with a sample of our products on request.
In addition, we can assist you with the development of prototypes and manufacture these, including machining, labelling or customised features. This allows the fit and function to be reliably tested even before series production begins.
ROLEC offers perfectly coordinated HMI enclosures and support arm systems, all from a single source.
Depending on the application, the following systems are used:
• profiPLUS 50 – designer support arms for light to medium loads
• profiPLUS 70 – designer support arms for medium to heavy loads
• taraSMART – modern support arm system with integrated cable routing
• taraPLUS – a cost-effective solution for numerous industrial applications
• QUADRO 50 – a robust support arm system for medium loads
• QUADRO 80 – a robust support arm system for heavy loads
Our support arm systems enable safe cable routing, high stability and ergonomic positioning of control units. We would be happy to assist you in selecting the right combination of enclosure and support arm.
