mobilCASE
- Three widths options – custom lengths on demand
- Can also be used as a wall or desk enclosure
- Integrated battery compartment available
Product description

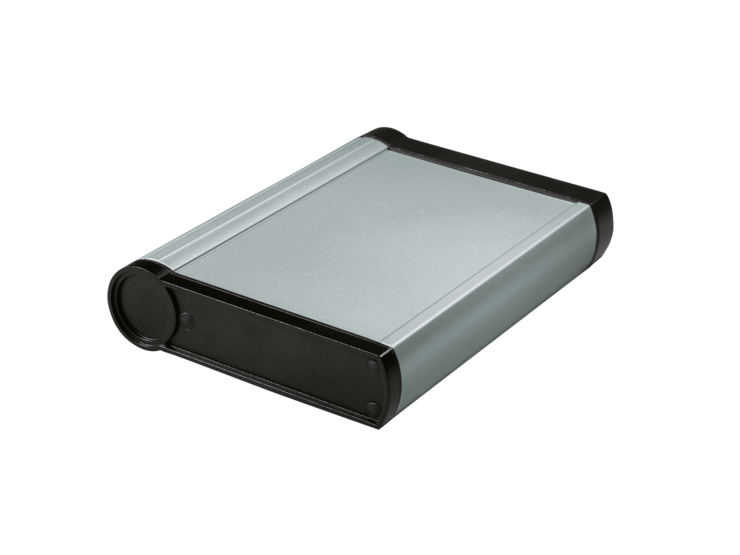

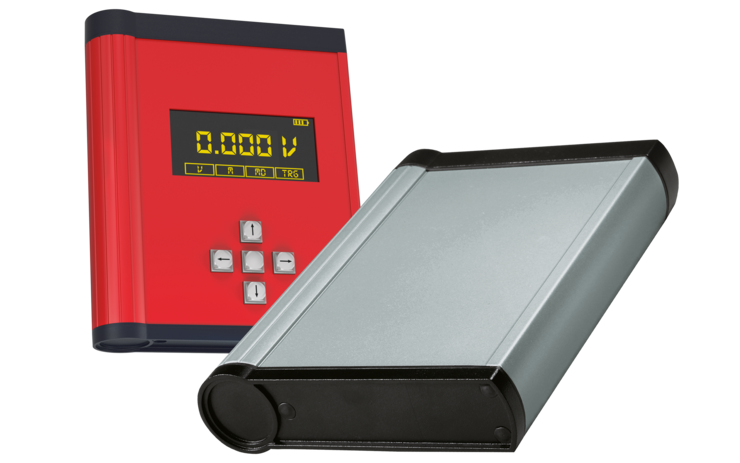

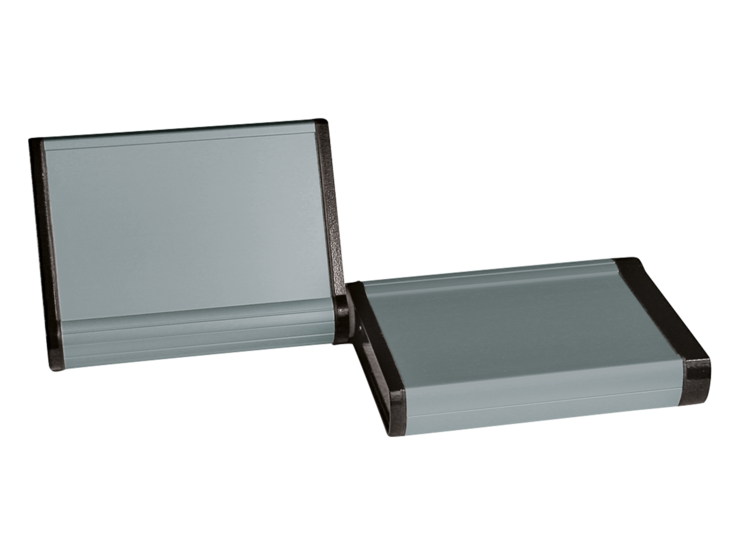

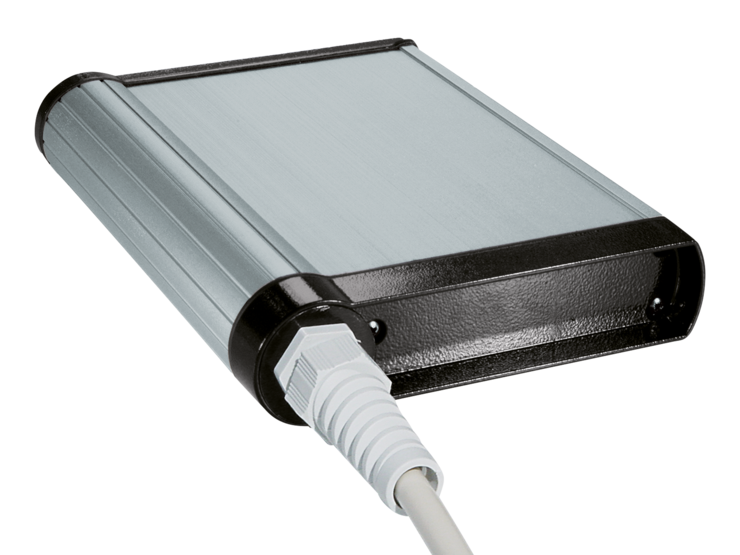

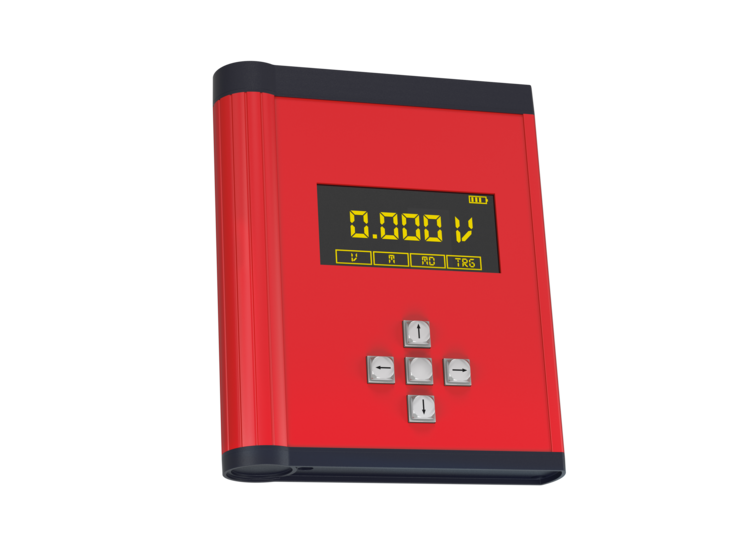

mobilCASE is a modern and ergonomic range of extruded enclosures which is ideal for handheld electronic instruments and mobile machine/robotic controllers. Three standard widths are available to suit a wide range of applications. The enclosures can be supplied in custom lengths on demand. Each enclosure consist of a case profile and two end covers which are supplied with TPE moulded sealing gaskets and a screw kit. There are various types of end cover kits and accessories to suit different uses and installation set-ups. The enclosures are specified from individual kits.
HOW TO CONFIGURE YOUR mobilCASE ENCLOSURES
1). Enclosure Profile

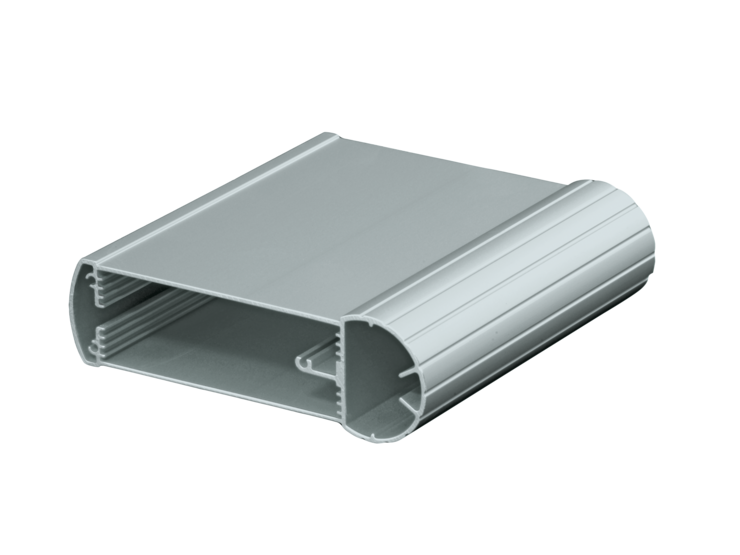

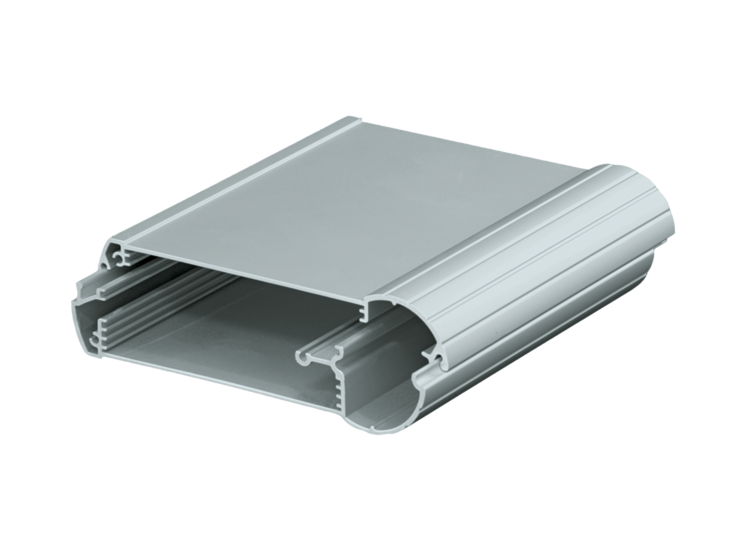

Select the size and type of enclosure profile you need from the table below (click on part no.). The profiles are specified in PCB widths: 80, 100 and 130 mm (Dim. P). Types: 1-Part (IP 65) single profile for slide-in PCBs or 2-Part (IP 54) open profile which allows for keypads, displays etc. to pass through the top (when machined).
2). End Covers Kit
Select a suitable end cover kit from the accessories section. All cover kits include two TPE moulded seals and a screw kit. Options:

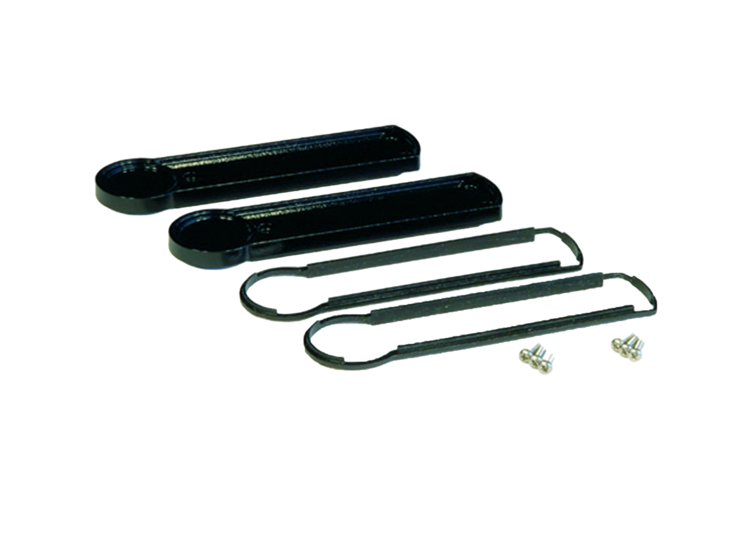

- Set DF - two flat end covers

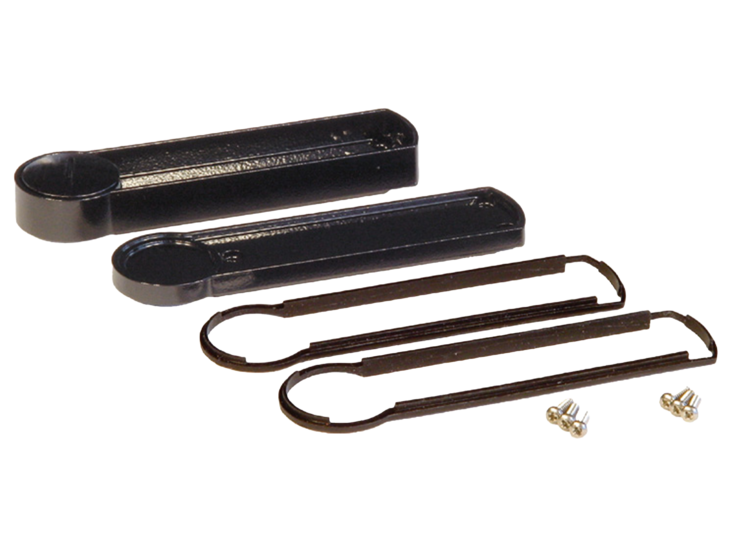

- Set DK - one flat and one deep end cover with M16 screw plug (for battery compartment access)

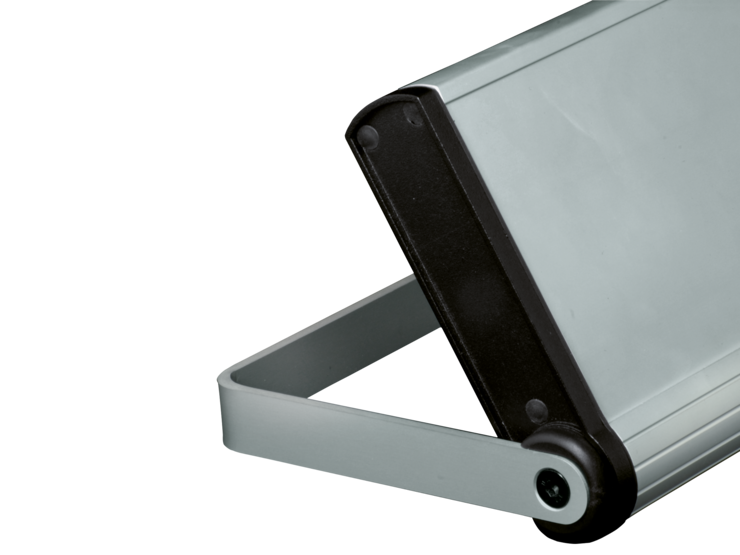

- Set ABF - adjustable tilt stand with two flat end covers
- Set ABK - adjustable tilt stand with one flat and one deep end cover with M16 screw plug

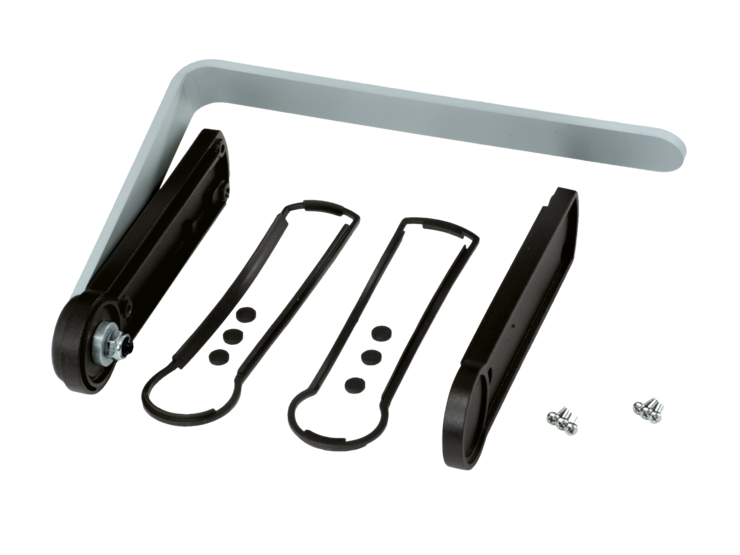

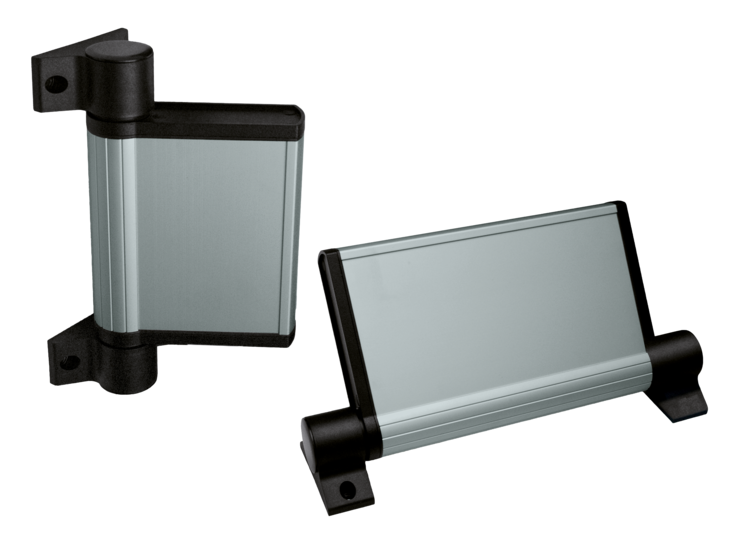

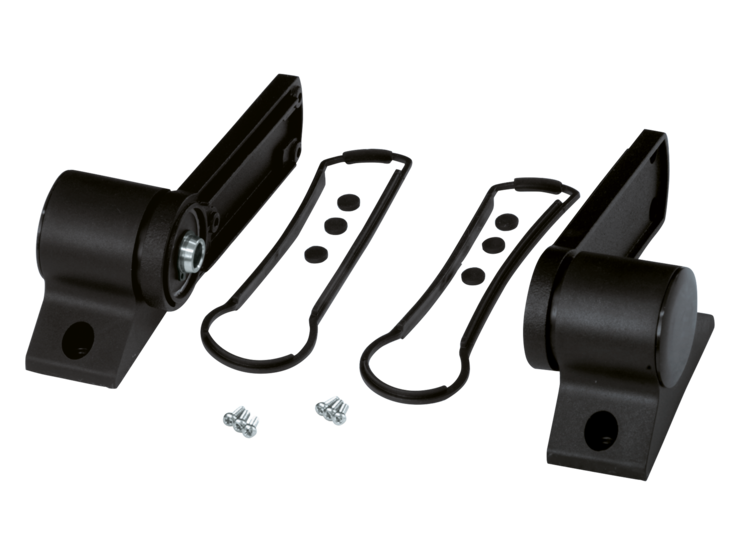

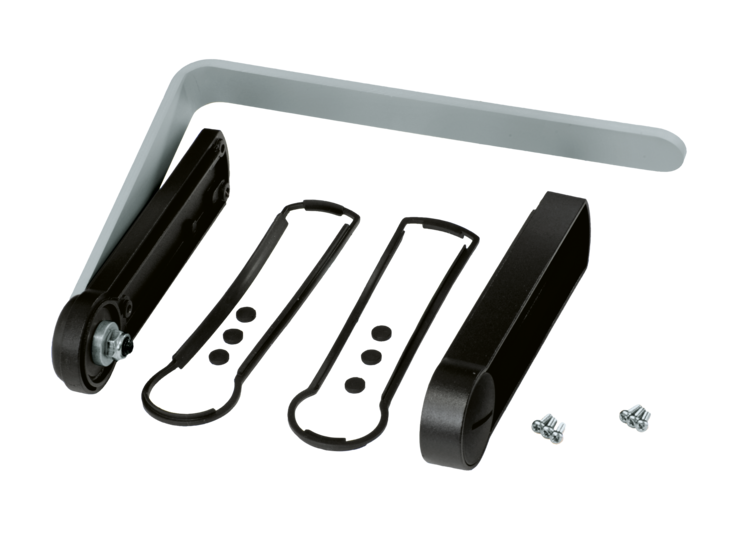

- Set WH - wall/machine pivot mount bracket with two flat end covers
- Set PG - two rotating end covers for connecting two units together.
3). Accessories
Select any optional accessories:

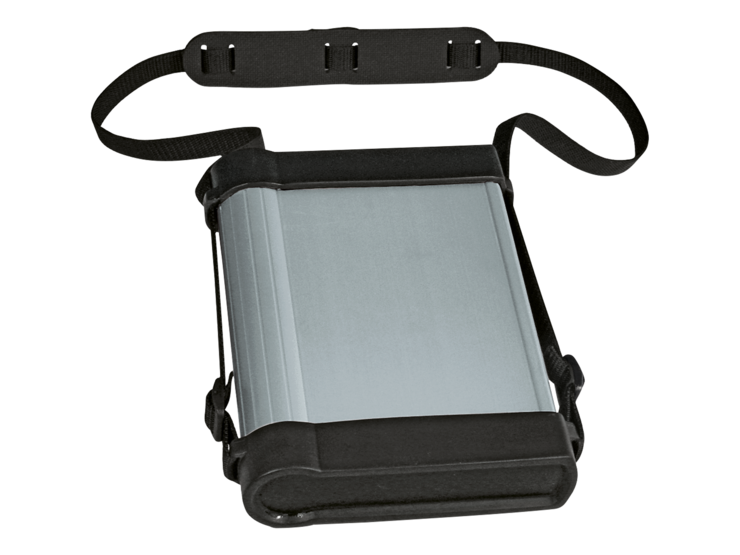

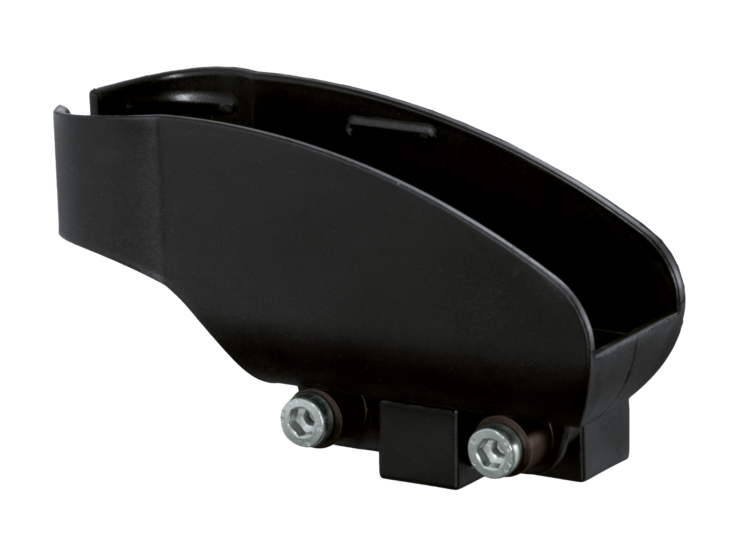

- Set PK - shoulder strap with two protection caps for carrying the unit

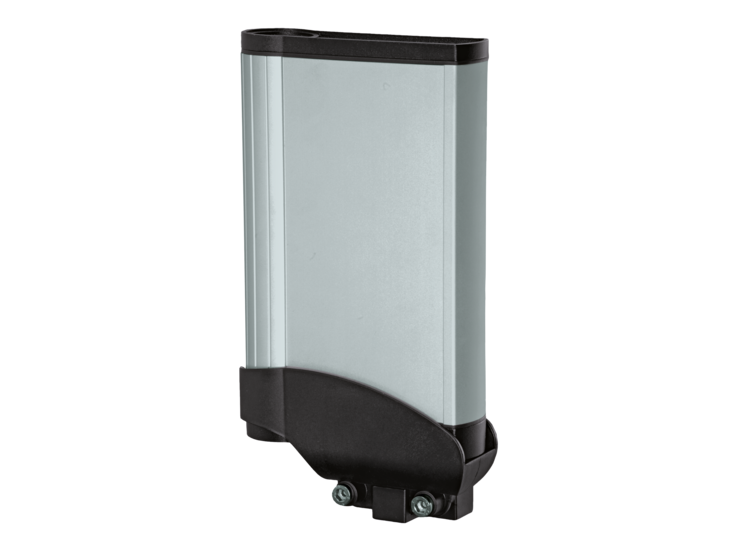

- Set CH - case holder for storing the unit on a wall or machine

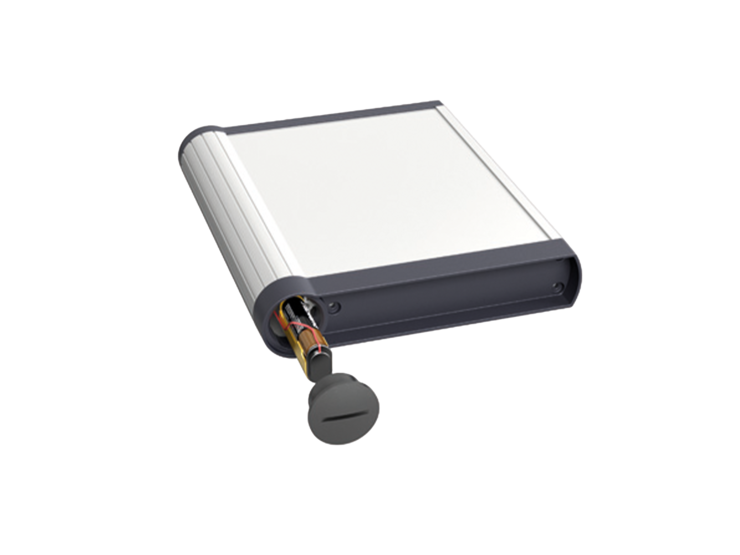

- Set AH - battery holders for 2 or 4 1.5V AA cells
- Set KV - M16 cable gland adaptor kit (replaces screw plug on deep end covers).
CONFIGURATOR
You can also specify these enclosures in custom sizes using the mobilCASE configurator.
CUSTOMIZED VERSIONS
We can supply mobilCASE enclosures fully machined and finished to your requirements.
Product overview
| Image | Article name | Type | Article number | Length | Width | Height | Request | Details |
|---|---|---|---|---|---|---|---|---|
 | mobilCASE | 1-Part Profile P 80-1-120 | 250.080.120 | 4.724 | 4.724 | - | Details | |
 | mobilCASE | 1-Part Profile P 80-1-160 | 250.080.160 | 6.299 | 4.724 | - | Details | |
 | mobilCASE | 1-Part Profile P 100-1-160 | 250.100.160 | 6.299 | 5.512 | - | Details | |
 | mobilCASE | 1-Part Profile P 100-1-200 | 250.100.200 | 7.874 | 5.512 | - | Details | |
 | mobilCASE | 1-Part Profile P 130-1-180 | 250.130.180 | 7.087 | 6.693 | - | Details | |
 | mobilCASE | 1-Part Profile P 130-1-240 | 250.130.240 | 9.449 | 6.693 | - | Details | |
 | mobilCASE | 2-Part Profile P 80-2-120 | 251.080.120 | 4.724 | 4.724 | - | Details | |
 | mobilCASE | 2-Part Profile P 80-2-160 | 251.080.160 | 6.299 | 4.724 | - | Details | |
 | mobilCASE | 2-Part Profile P 100-2-160 | 251.100.160 | 6.299 | 5.512 | - | Details | |
 | mobilCASE | 2-Part Profile P 100-2-200 | 251.100.200 | 7.874 | 5.512 | - | Details | |
 | mobilCASE | 2-Part Profile P 130-2-180 | 251.130.180 | 7.087 | 6.693 | - | Details | |
 | mobilCASE | 2-Part Profile P 130-2-240 | 251.130.240 | 9.449 | 6.693 | - | Details |
Technical data
| Enclosure profiles | 3 standard PCB widths (Dim. P: 80 mm, 100 mm, 130 mm) in 2 versions |
| Additional info | Integrated recess in the profiles for a membrane keypad or product label |
| Die-cast flat end covers or deep end covers with collar to protect plug connectors | |
| Optional: Adapter with M16 cable gland for external power supply Optional: Case holder for storing the unit on the wall or machine Optional: Combination kit for connecting two profiles (also with different sections) | |
| Optional: Shoulder strap with protective caps for portable instruments | |
| Optional: Adjustable tilt stand kits including end covers | |
| Optional: Battery holders for 2 or 4 AA batteries | |
| Material/colour | Extruded aluminium profile: AL Mg Si 0.5 / DIN 17615 |
| Powder coating, silver metallic | |
| Optional: Anodised | |
| End cover (2 variants): Die-cast zinc alloy GD-Zn Al 4 Cu 1 / DIN EN 12844 | |
| Powder coating, RAL 9005 Optional: Special colours | |
| Fastening | Optional: Clip holder for setting down devices at the wall or machine |
| Optional: Articulated wall/desk fixation including stand | |
| Internal mounting | For circuit board widths 80 mm/100 mm (Eurocard)/130mm |
| Ingress protection | Profile 1-part IP 65 / EN 60529 |
| Profile 2-part IP 54 / EN 60529 | |
| Set PG IP 54 / EN 60529 | |
| Gasket | Lid: TPE moulded gasket, silicone-free |
| Profile: Chloroprene O-ring gasket (CR) | |
| Lid screws | Stainless steel 1.4567 |
| Customising | Learn more about our full customising service for installation-ready enclosures |
Find out more about the product in the video
Watch the video to find out more about mobilCASE and get a clear impression of the product. The video gives you the chance to experience mobilCASE from different angles and get an initial overview.
