Panel-IPC solutions for Asem
If you have an Asem Panel-IPC from the Harmony QT2150 – HT2150, QT2200 – HT2200, QT2250 – HT2250, QT3200 – HT3200, QT3500 – HT3500, QT3400/QT3600 HT3400/HT3600, QT5400/QT5600, HT5400/HT5600 and require a high-quality, modern HMI enclosure.

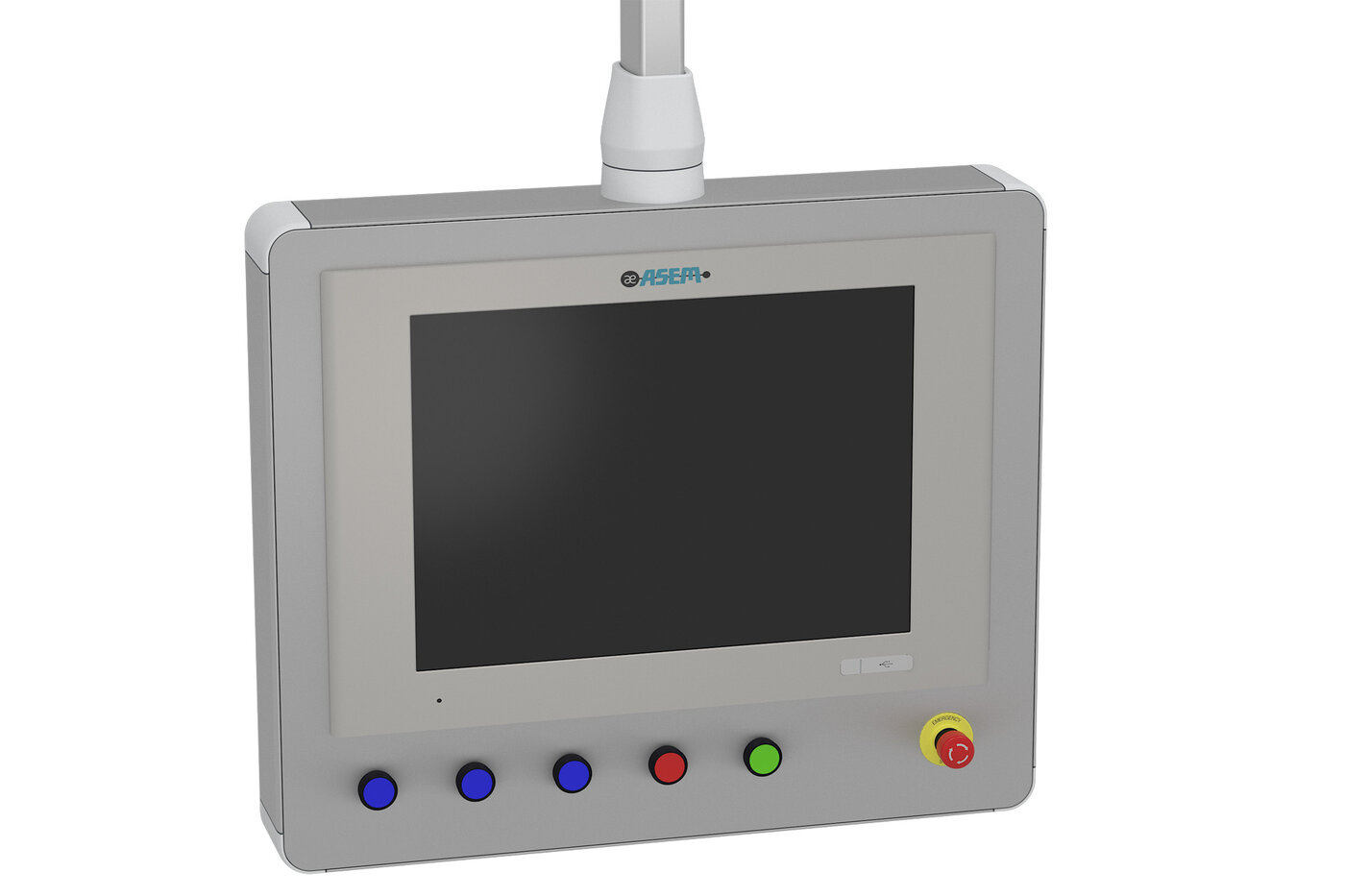

profiPANEL for Asem
As the profiPANEL is available in nine different depths, it is an excellent solution for installations where air circulation is a key consideration. You are sure to find the right depth for your application here. Thanks to the ROLEC design, your Asem Panel-IPC fits perfectly into the front of the HMI enclosure. Narrow bezels, a modern design language and sophisticated technology are the hallmarks of this enclosure series. The option to have the corners of the enclosure in different colours also allows you to add colour accents or reflect your corporate identity.
profiPANEL is ideally suited for the following Asem Panel-IPCs:
- QT2150 – HT2150, QT2200 – HT2200, QT2250 – HT2250, QT3200 – HT3200, QT3500 – HT3500,
- QT3400/QT3600, HT3400/HT3600, QT5400/QT5600, HT5400/HT5600
Another tip: if you need a quick solution, you can fall back on the profiPANEL standard range. Four ready-made stock sizes with customisable front panels for built-in panels measuring 10″–12″, 12″–15″, 15″–17″ and 17″–21″.
multiPANEL for Asem
The premium multiPANEL enclosure is available in two depths. The dimensions are designed to accommodate virtually any conceivable application for Siemens SIMATIC flush-mounted panels. Thanks to the ROLEC design, your Siemens SIMATIC flush-mounted panel also blends seamlessly into the front of the HMI enclosure in this premium HMI enclosure series. Narrow bezels, a high-quality look reminiscent of modern smartphones, and sophisticated technology are the hallmarks of this enclosure series. Front panel machining for pushbuttons and/or emergency stop buttons is offered as standard by ROLEC as part of its full service, thus providing a flexible and cost-effective alternative to the standalone Siemens SIMATIC HMI.
multiPANEL is ideally suited for the following SIMATIC flush-mounted panels:
- Comfort Panels: KTP400, KTP700, KTP900, KTP1200, TP400, TP700, TP900, TP1200, TP1500, TP1900, TP2200, MTP400, MTP700, MTP1000, MTP1200, MTP1500, MTP1900, MTP2200, KP700, KP900, KP1200, KP1500, Unified Comfort Panel
- Industrial Flat Panels: IFPxxxx
- Industrial Think Clients: ITCxxxx
- Industrial Panel PCs: IPCxxxx
- SINUMERIK ONE: 808D advanced, 828D, 840d
Suitable for installation depths of up to 81 mm. On request, we will be happy to check feasibility, provided you specify the exact model number of your PC.
Support arm solutions for Asem
To complement the two HMI panel enclosures, multiPANEL and profiPANEL, ROLEC offers two modern support arm systems, both of which blend in perfectly with the HMI enclosures.

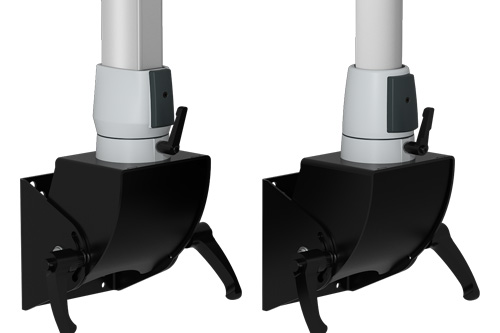

taraSMART VESA adapter
The VESA adapter from the taraSMART series allows you to connect to the Asem series
-
VK3500 - BA
-
VK3200
-
VPC2200
Components required for adaptation:
-
taraSMART VESA adapter (item no.: 142.000.005) and
-

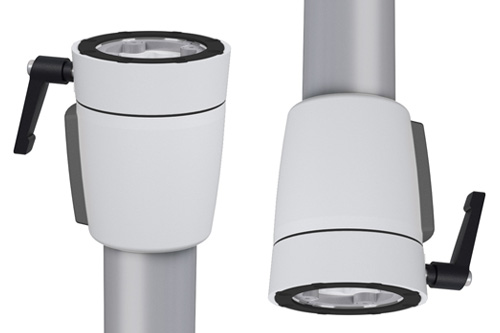

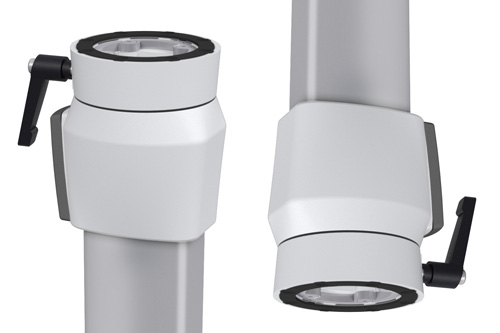

taraSMART coupling profile (Item No.: 141.025.000) or taraSMART coupling ø48 (Item No.: 141.025.001)

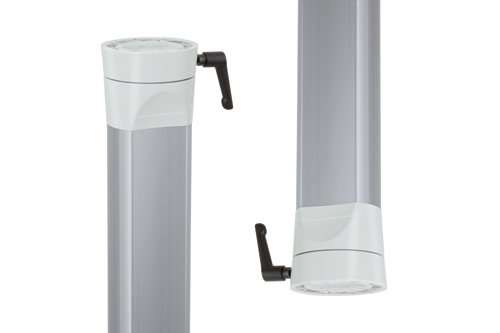

profiPLUS 50 Coupler (standing/suspended)
The coupler from the profiPLUS 50 series (with a pre-assembled support profile in custom lengths) is available in both floor-standing and suspended versions and allows you to connect to the Asem series
-
VK3500 - BA
-
VK3200
-
VPC2200
Components required for adaptation:
-
profiPLUS standing coupling (item no.: 142.240.XXX) or
-
profiPLUS hanging coupling (142.250.XXX)

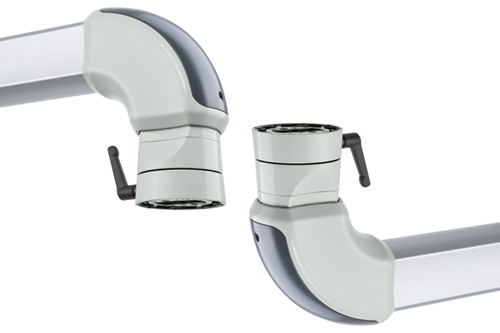

profiPLUS 50 angle coupling, upright/suspended
The angle coupling from the profiPLUS 50 series is available in both floor-standing and suspended versions and allows you to connect to the Asem series
-
VK3500 - BA
-
VK3200
-
VPC2200
Components required for adaptation:
- profiPLUS vertical angle coupling (item no.: 142.034.000) or
- profiPLUS angle coupling, suspended (Item No.: 142.035.000)
