Mounting arm solutions for B&R panel PCs Mounting arm
If you have a standalone B&R console or a B&R VESA console from the Panel PC 2200 (AP5000) mounting arm or Panel PC 2100 (AP5000) mounting arm series and require a suitable mounting arm system.

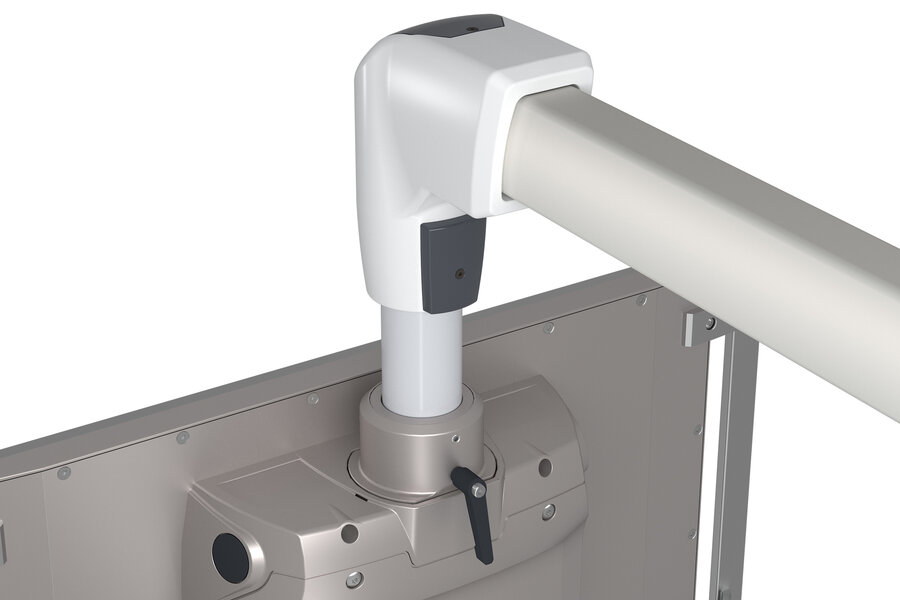

taraSMART: Angle Ø48
The Ø48 elbow from the taraSMART range allows a Ø48 round tube to be connected using a single standard component.
Components required for adaptation:
-
taraSMART Ø48 elbow, item no.: 141.020.001
-
Round tube Ø48 Item no.: 144.510.XXX

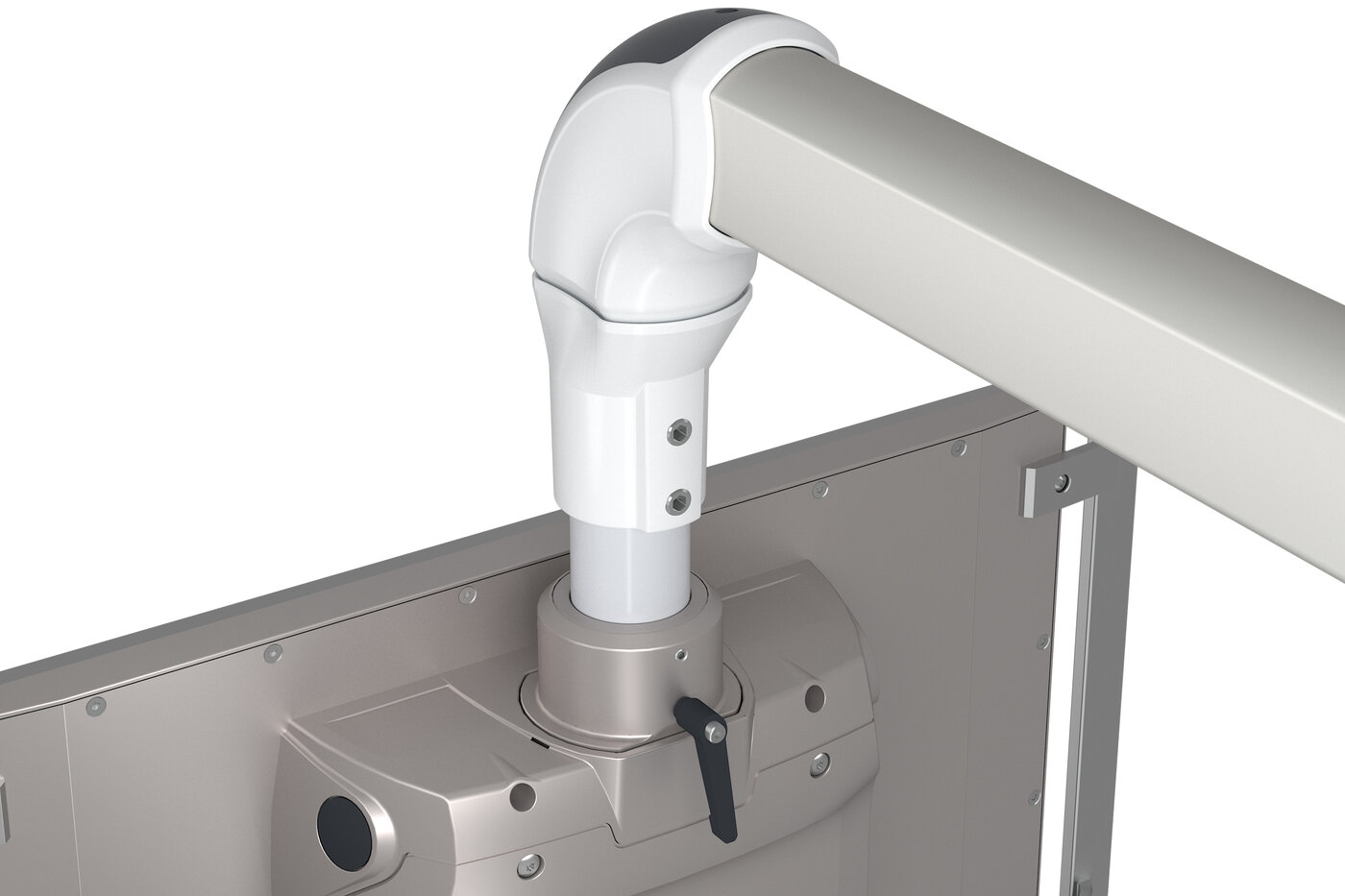

profiPLUS 50: B&R adapter; ø48 profile
The B&R Ø 48 profile adapter is a cost-effective option for anyone who does not require an extended rotation range for the B&R Automation Panel 5000 mounting arm (multitouch or singletouch) or the Panel PC 2100 mounting arm (multitouch or singletouch). The adapter is attached directly to the profiPLUS profile. There is no need for an additional coupling.
Components required for adaptation:
-
B&R adapter Ø48 profile Part No.: 142.000.003

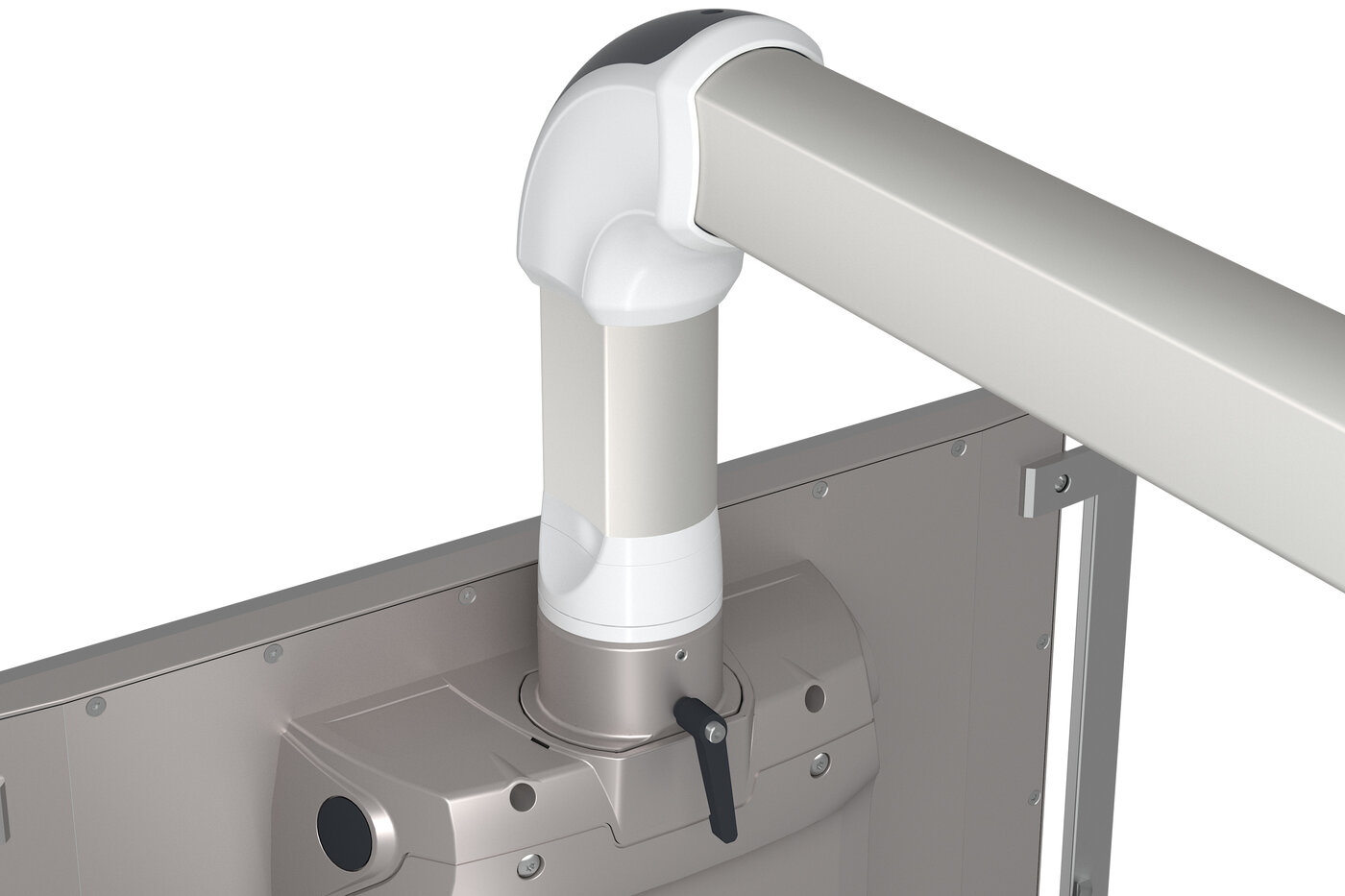

profiPLUS 50: 50/48 adapter including bracket
The 50/48 adapter, including elbow, from the profiPLUS 50 series allows a 48 mm diameter round tube to be connected using a single standard component.
Components required for adaptation:
-
50/48 adapter including elbow, item no.: 142.020.001
-
Round tube Ø48 L= X mm (to be manufactured to the nearest millimetre) Item no.: 144.300.XXX
HMI panel-mount solutions for B&R Panel PCs
If you have a B&R Panel PC (either the single-touch or multi-touch version) and need a high-quality, modern HMI enclosure.

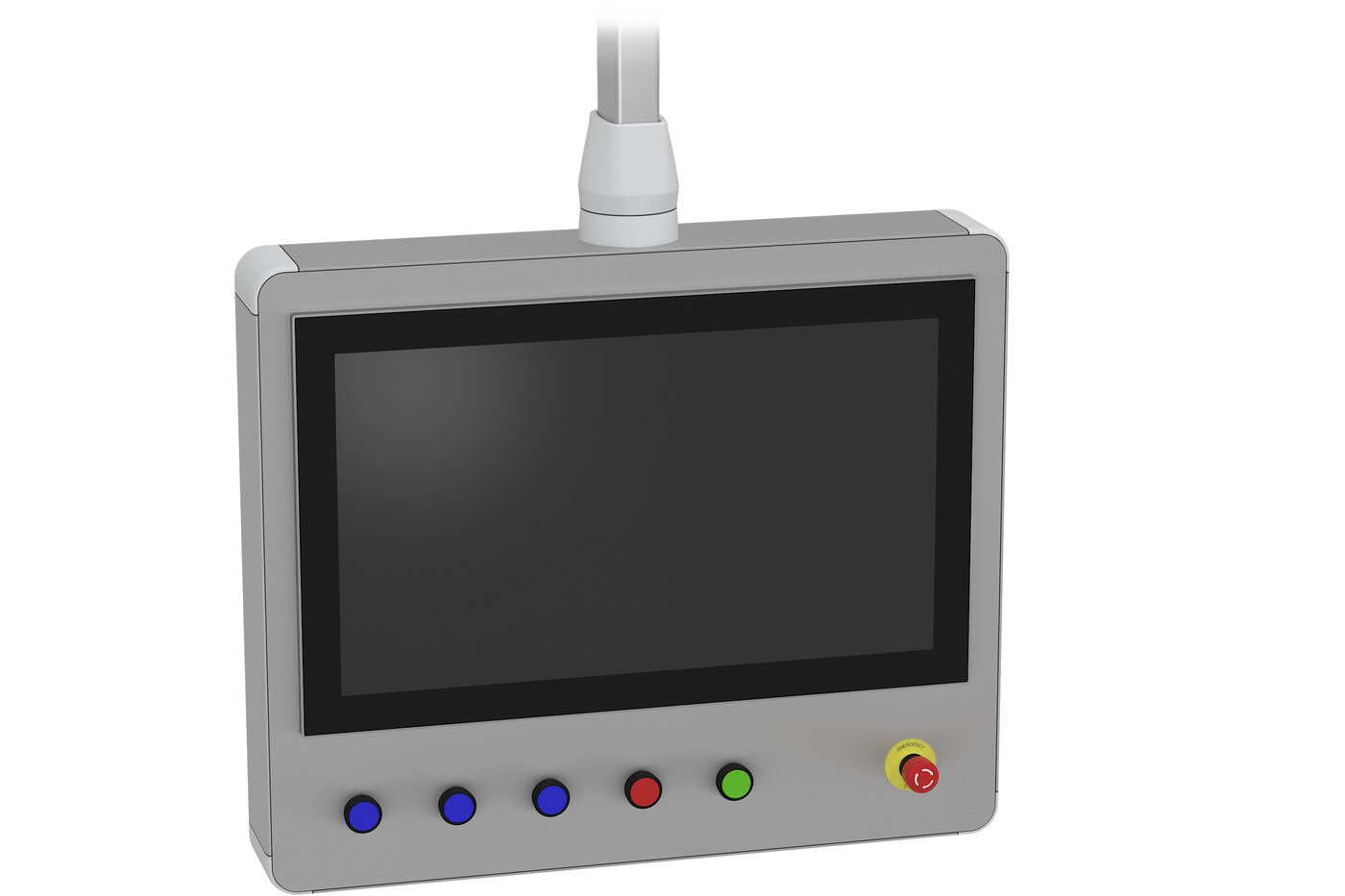

profiPANEL for B&R;
As the profiPANEL is available in nine different depths, it is an excellent solution for installations where air circulation is a key consideration. You are sure to find the right depth for your application here. Thanks to the ROLEC design, your B&R Singletouch or Multitouch Panel PC fits perfectly into the front of the HMI enclosure. Narrow bezels, a modern design language and sophisticated technology are the hallmarks of this enclosure series. The option to have the corners of the enclosure in different colours also allows you to add colour accents or reflect your corporate identity.
profiPANEL is ideally suited for the following B&R Panel PCs:
-
Panel PC 3100 Multitouch
-
Panel PC 3100 Single Touch
-
Panel PC 2200 Multitouch
-
Panel PC 2200 Single Touch
-
Panel PC 2100 Multitouch
-
Panel PC 2100 Single-touch
-
Panel PC 1200
-
Panel PC 900 Multi-touch
-
Panel PC 900 Single-touch
Another tip: if you need a quick solution, you can fall back on the profiPANEL standard range. Four ready-made stock sizes with customisable front panels for flush-mounted panels in 10″–12″, 12″–15″, 15″–17″ and 17″–21″.

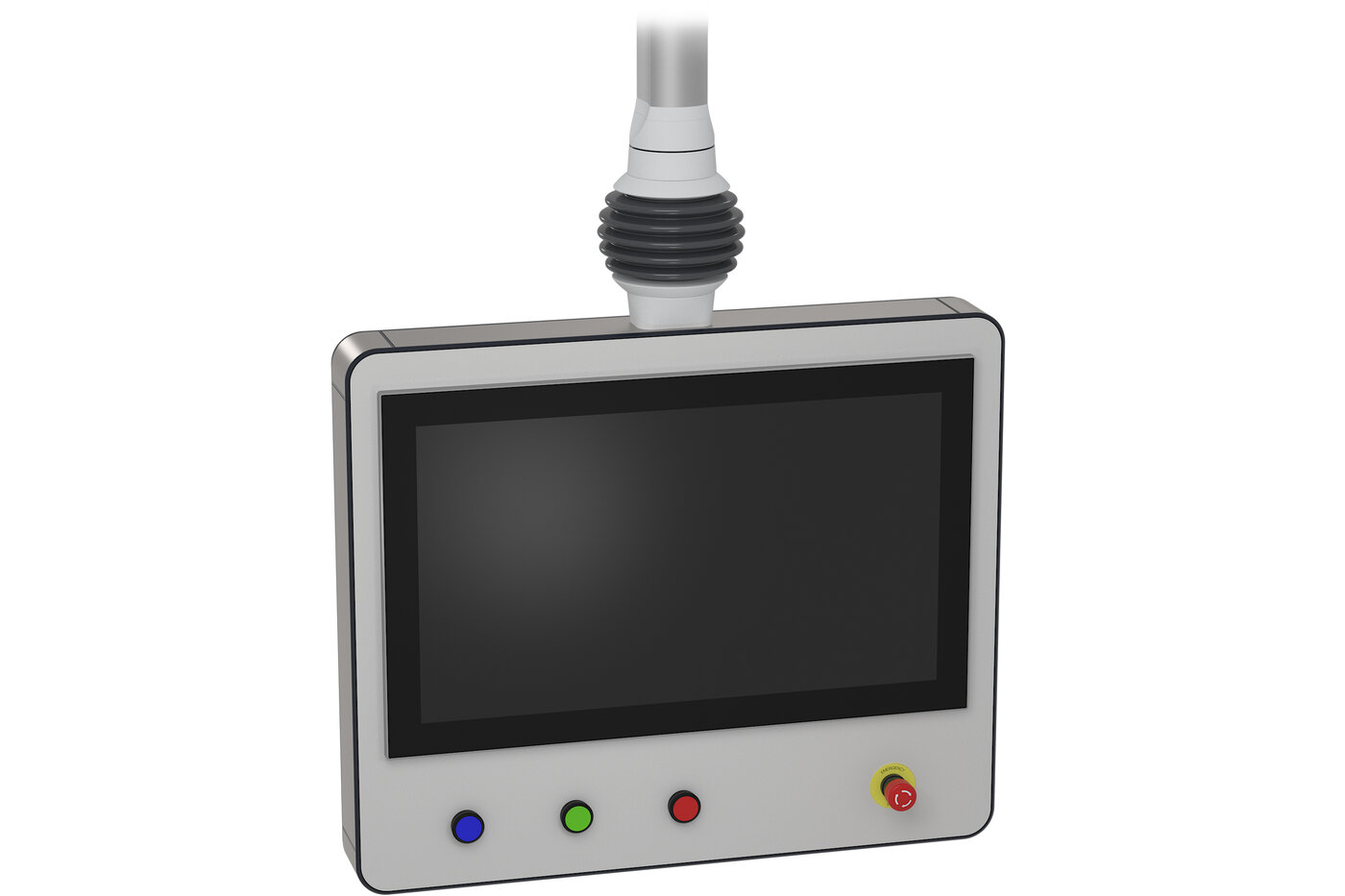

multiPANEL for B&R;
The premium multiPANEL enclosure is available in two depths. The dimensions cover virtually every conceivable application for B&R Panel PCs. Thanks to the ROLEC design, your B&R Panel PC also integrates seamlessly into the front of the HMI enclosure in this premium HMI enclosure series. Narrow bezels, a high-quality look reminiscent of modern smartphones, and sophisticated technology are the hallmarks of this enclosure series. Front panel machining for pushbuttons and/or emergency stop buttons is offered as standard by ROLEC as part of its full-service package, thus providing a flexible and cost-effective alternative to the self-contained B&R Panel-PCs with mounting arms.
multiPANEL is ideally suited for the following B&R Panel PCs:
-
Panel PC 3100 Multitouch
-
Panel PC 3100 Single Touch
-
Panel PC 2200 Multitouch
-
Panel PC 2200 Singletouch
-
Panel PC 2100 Multitouch
-
Panel PC 2100 Single-touch
-
Panel PC 1200
-
Panel PC 900 Multi-touch
-
Panel PC 900 Single Touch
multiPANEL is suitable for installation depths of up to 81 mm. On request, we will be happy to check feasibility based on the exact model number of your PC.
