The multivariable, thermoplastic enclosure
IP 66 - Optional: IP 67
The key product features:
• Enclosure material: ABS
• Enclosure surface: similar to RAL 7035
• Lid screws stainless steel 1.4567
• Integrated recess in cover for membrane keypad or front plate
• Fire protection class UL-94 HB
• Enclosure seal: Silicone molded gasket
Request offer
PDF datasheet
More
technoCASE is a modern range of plastic enclosures for industrial electronics and electrical equipment. The enclosures feature snap-on design strips which hide the lid screws and mounting channels, and give the enclosures their own individual appearance.
The design strips are available in light gray (standard), red, green, blue or yellow for individual color coding or to match company colors. Both the lid and base have a recess for mounting a membrane keypad, face plate or product label. A large range of standard sizes is available. There is also an option to combine various lids and bottoms with each other, increasing the variety. Threaded screw bosses in the lid and base can be used for fitting circuit boards, mounting plates etc. Compatible cable glands, terminal rails and other accessories are also available.

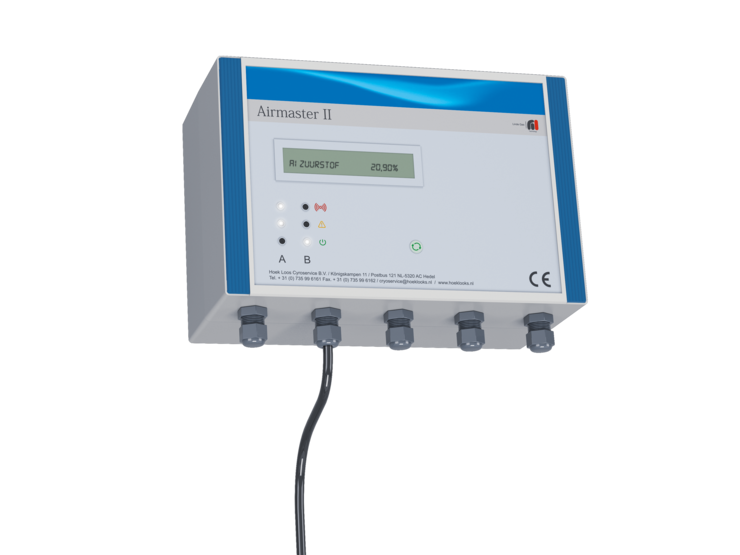

We can supply technoCASE enclosures fully customized to your requirements.
Product overview
Dimensions
Data Sheets
Data
- technoCASE
- TAF 080
- Part No.
- 200.080.000
- Dimensions
- 3.15x3.15x2.36 Remember
- technoCASE
- TAF 082
- Part No.
- 200.082.000
- Dimensions
- 3.15x4.72x2.36 Remember
- technoCASE
- TAF 084
- Part No.
- 200.084.000
- Dimensions
- 3.15x6.30x2.36 Remember
- technoCASE
- TAF 086
- Part No.
- 200.086.000
- Dimensions
- 3.15x9.45x2.36 Remember
- technoCASE
- TAF 120
- Part No.
- 200.120.000
- Dimensions
- 4.72x4.72x2.36 Remember
- technoCASE
- TAF 122
- Part No.
- 200.122.000
- Dimensions
- 4.72x7.87x2.36 Remember
- technoCASE
- TAF 124
- Part No.
- 200.124.000
- Dimensions
- 4.72x9.45x2.36 Remember
- technoCASE
- TAF 160
- Part No.
- 200.160.000
- Dimensions
- 6.30x6.30x2.36 Remember
- technoCASE
- TAF 162
- Part No.
- 200.162.000
- Dimensions
- 6.30x9.45x2.36 Remember
- technoCASE
- TAF 202
- Part No.
- 200.202.000
- Dimensions
- 7.87x11.81x3.15 Remember
- technoCASE
- TAF 242
- Part No.
- 200.242.000
- Dimensions
- 9.45x14.17x3.15 Remember
- technoCASE
- TA 080
- Part No.
- 201.080.000
- Dimensions
- 3.15x3.15x3.15 Remember
- technoCASE
- TA 082
- Part No.
- 201.082.000
- Dimensions
- 3.15x4.72x3.15 Remember
- technoCASE
- TA 084
- Part No.
- 201.084.000
- Dimensions
- 3.15x6.30x3.15 Remember
- technoCASE
- TA 086
- Part No.
- 201.086.000
- Dimensions
- 3.15x9.45x3.15 Remember
- technoCASE
- TA 120
- Part No.
- 201.120.000
- Dimensions
- 4.72x4.72x3.54 Remember
- technoCASE
- TA 122
- Part No.
- 201.122.000
- Dimensions
- 4.72x7.87x3.54 Remember
- technoCASE
- TA 124
- Part No.
- 201.124.000
- Dimensions
- 4.72x9.45x3.54 Remember
- technoCASE
- TA 160
- Part No.
- 201.160.000
- Dimensions
- 6.30x6.30x3.54 Remember
- technoCASE
- TA 162
- Part No.
- 201.162.000
- Dimensions
- 6.30x9.45x3.54 Remember
- technoCASE
- TA 202
- Part No.
- 201.202.000
- Dimensions
- 7.87x11.81x4.72 Remember
- technoCASE
- TA 242
- Part No.
- 201.242.000
- Dimensions
- 9.45x14.17x4.72 Remember
- technoCASE
- TAH 162
- Part No.
- 202.162.000
- Dimensions
- 6.30x9.45x4.72 Remember
- technoCASE
- TAH 202
- Part No.
- 202.202.000
- Dimensions
- 7.87x11.81x6.30 Remember
- technoCASE
- TAH 242
- Part No.
- 202.242.000
- Dimensions
- 9.45x14.17x6.30 Remember
3.15x3.15x2.36
4.72x3.15x2.36
6.30x3.15x2.36
9.45x3.15x2.36
4.72x4.72x2.36
7.87x4.72x2.36
9.45x4.72x2.36
6.30x6.30x2.36
9.45x6.30x2.36
11.81x7.87x3.15
14.17x9.45x3.15
3.15x3.15x3.15
4.72x3.15x3.15
6.30x3.15x3.15
9.45x3.15x3.15
4.72x4.72x3.54
7.87x4.72x3.54
9.45x4.72x3.54
6.30x6.30x3.54
9.45x6.30x3.54
11.81x7.87x4.72
14.17x9.45x4.72
9.45x6.30x4.72
11.81x7.87x6.30
14.17x9.45x6.30
| Enclosure sizes | 25 |
| Further information | Integrated recess for membrane keypads or front plates |
| Functional and extensive range of accessories | |
| Lid and bottom can be replaced if needed | |
| Enclosure can be supplied as a flush-mounting, surface-mounting or top hat rail mounting model | |
| Transparent lid available on request | |
| Full protective insulation in accordance with VDE 0100 | |
| Enclosure | ABS halogen-free, similar to RAL 7035 light gray |
| 1° mold slope for casting ejection | |
| Special materials and colors on request | |
| Flammability | UL 94 HB |
| Fastening | Separate screw channels outside of the enclosure interior. |
| Internal mounting | Fastening option for self-grooving screws on the base of the enclosure and in the lid |
| Ingress protection | IP 66 / EN 60529 Optional: IP 67 / EN 60529 |
| Gasket | Silicone gasket |
| Lid screws | Stainless steel 1.4567, captive |
| Customizing | Learn more about our full customizing service for installation-ready enclosures |
