Request offer
technoCASE TA 086
201.086.000
IP 66
IP 67 opt.
- Thermoplastic ABS enclosure
- Lid and base can each be used as either top or bottom part
- Lid with recess for accommodating membrane keypads/front panels
- Design covers available in six colors
Technical data
| Typ drawings | TA 086 |
| Articlenumber | 201.086.000 |
| Width (W) x Length (L) x Height (H) | 3.15x9.449x3.15 |
| Assembly measure D x E | 2.598 x 9.055 |
| Weight (W) | 386 |
| Color measure D x E |
RAL 7035 |
| Silicone gasket | |
| IP 66 | |
| IP 67 opt. | |
| Customs tariff number | 39269097 |
Technical drawings
Accessories
-
Inside hinges -
Hinges -
External mounting brackets -
Design covers red -
Design covers blue -
Design covers green -
Design covers yellow -
Design covers grey -
DIN rail mounting kit (80) -
PCB support -

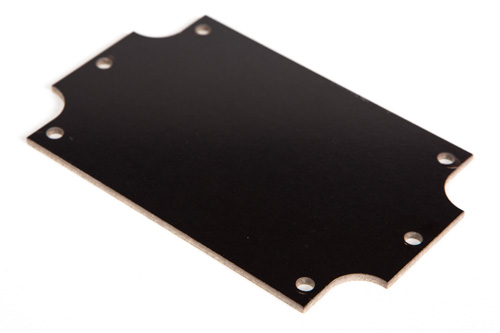

Mounting plate -
Front plate -

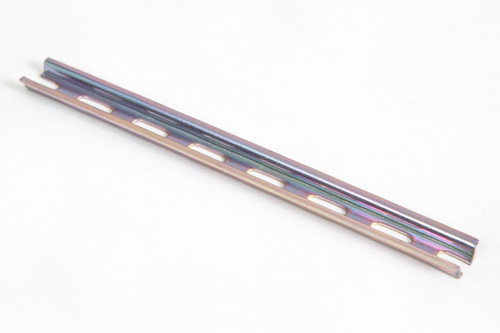

Supporting rail
