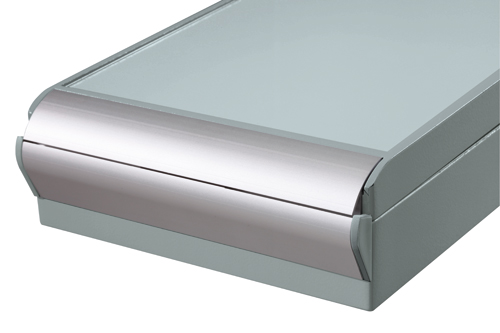

aluCASE ACF 110
190.110.000
IP 66
IP 67
IP 69K opt.
- Lid with recess for accommodating membrane keypads/front panels
- Design covers for concealing the screw channels
- Mounting of the enclosure without opening the lid
Technical data
| Typ drawings | ACF 110 |
| Articlenumber | 190.110.000 |
| Width (W) x Length (L) x Height (H) | 4.331x5.512x2.362 |
| Assembly measure D x E | 2.362 x 4.724 |
| Weight (W) | 700 |
| Color measure D x E |
RAL 7040 |
| Integrated lid supports | |
| Design covers POM | |
| Designed gasket | |
| IP 66 | |
| IP 67 | |
| IP 69K opt. | |
| Customs tariff number | 76169910 |
Technical drawings
Accessories
-
Raised ingress protection -
Corrosion proof coating RAL 5009 -
Design cover alu -
Design covers anthracite -
Design covers red -
Design covers blue -
Silicone enclosure gasket -
EMC shielding -
Hinges -
Console adapter
