aluCLIC
The quick-change enclosures
IP 66, IP 67 - Optional: IP 69K
The key product features:
• Enclosure material: diecast aluminium
• Enclosure surface: powder coating, RAL 7035
• Lid fixed from the rear
• Enclosure can be mounted even when the lid is fitted
• Integrated recess in cover for membrane keypad or front plate
• Snap-on fastening to quick-change support
• Enclosure front almost fully usable
• Lid screws in stainless steel 1.4567
• Enclosure seal: TPE moulded gasket, silicone-free
Request offer
PDF datasheet
More

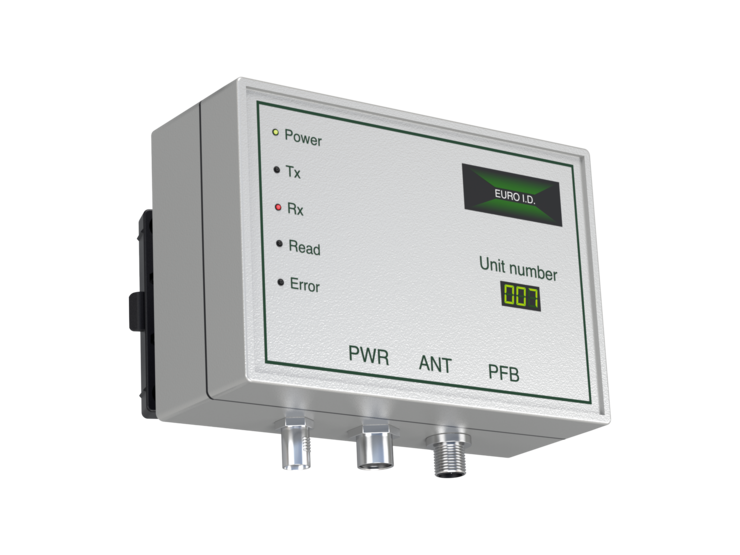

aluCLIC is a very attractive and unique range of aluminum enclosures which is designed for quick installation and rapid exchange of electronics equipment. A snap lock located under the enclosure can be easily disengaged and the enclosure changed in an instant. These enclosures really are practical, fast and neat to install.
Standard features include a full sized recessed area in the lid to accommodate a membrane keypad, front plate or product label, hidden assembly screws on the underside and threaded screw bosses in the base and lid for PCBs, mounting plates, DIN rails etc.. The enclosure snap-on device can be easily fastened to a wall, ceiling or a machine housing.
We can supply aluCLIC enclosures fully customized to your requirements.
Product overview
Dimensions
Data Sheets
Data
- aluCLIC
- ACL 092
- Part No.
- 240.092.000
- Dimensions
- 3.54x5.12x2.76 Remember
- aluCLIC
- ACL 112
- Part No.
- 240.112.000
- Dimensions
- 4.33x6.30x2.76 Remember
- aluCLIC
- ACL 132
- Part No.
- 240.132.000
- Dimensions
- 5.12x7.87x2.76 Remember
5.12x3.54x2.76
6.30x4.33x2.76
7.87x5.12x2.76
| Enclosure sizes | 3 |
| Additional info | Snap-on instead of mounted by screws |
| Change the enclosure in seconds | |
| More space for the electronics | |
| Enclosure front fully usable | |
| Lid screwed on rear side | |
| Integrated recess in the lid for a membrane keypad, front plate or product label | |
| Enclosure | Diecast aluminum alloy |
| EN AN-44300 DIN EN 1706 | |
| (GD Al Si 12/DIN 1725) | |
| 1° mold slope for casting ejection > internal circumference dimensions decrease by 1° towards enclosure bottom. | |
| Fastening | Snap-on device, plastic (POM), RAL 9005 deep black |
| Internal mounting | M5 fastening thread on the enclosure base and in the lid |
| Ingress protection | IP 66, IP 67 / EN 60529 |
| Optional: IP 69K / DIN 40050 | |
| Gasket | TPE molded gasket, silicone-free |
| Optional: Silicone gasket | |
| Lid screws | Stainless steel 1.4567, captive |
| Surface | Powder coating RAL 7035, light gray |
| Optional: Special colors | |
| Optional: Corrosion protection | |
| Customizing | Learn more about our full customizing service for installation-ready enclosures |
