Multivariable suspension arm system for light to medium loads

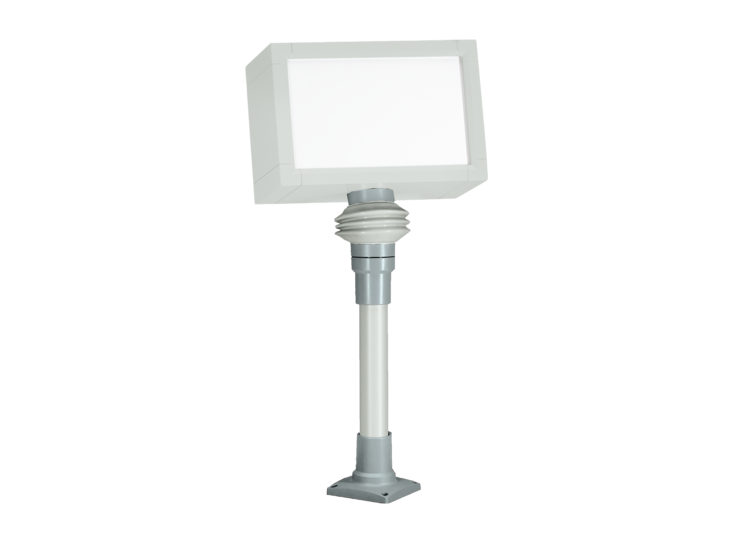

Base 48, console inclination rotary coupling

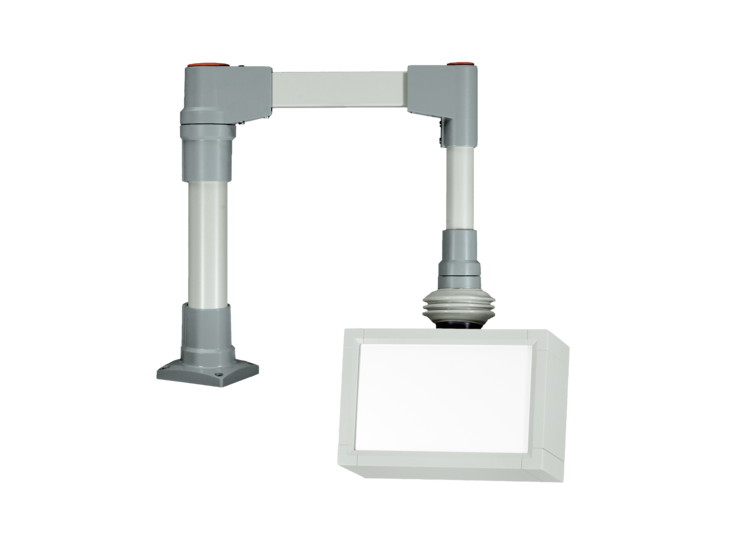

Base 70, tube rotation joint, elbow 48, inclination rotary coupling

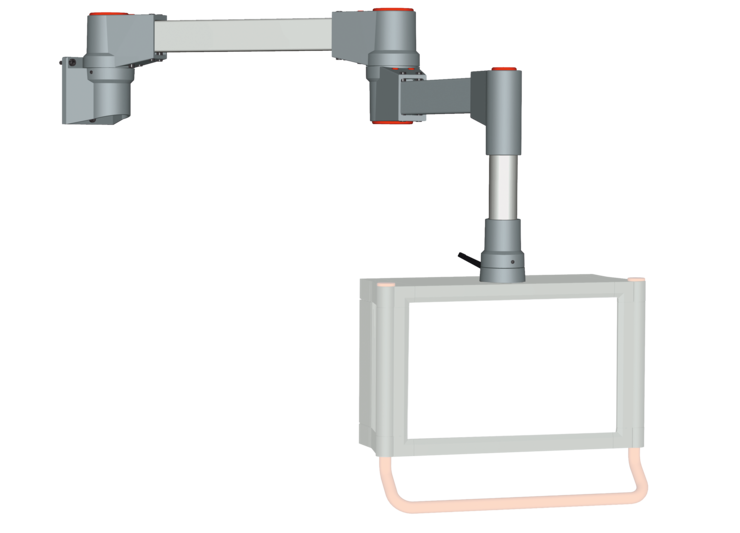

Socket joint, intermediate joint, elbow 48, inclination rotary coupling

Console inclination elbow rotary coupling

taraPLUS

The proven support arm system

IP 54

The key product features:
• Profile cross-sections: round Ø 48 and 70 mm. rectangular 40x60 mm
• System parts material: diecast aluminum, powder coating, RAL 7040
• Suspension profile material: drawn steel, powder coating, RAL 7035
• Various connections available
• Support profiles: a combination of round and/or rectangular tubes
• Various couplings available
• Simple and quick adjustment with set screws
• Can be used with all ROLEC control enclosures
• Possible to route connectors such as HDMI, patch cable, USB, etc. (not for DVI connectors)
• Gasket: chloroprene (CR)

The taraPLUS suspension arm system was developed for light to medium loads. It is quick and easy to assemble on site. The large openings in the system parts allow cables to be easily fed through. The special design combines round and square profiles, thereby achieving high static equilibrium. taraPLUS is a tried and trusted system which is tested to IP 54 protection class.

Request offer PDF datasheet

System elements

Choose the right “starting component” for your suspension arm here.

Support profiles

Support profiles are available in four standard lengths from stock, or precisely to the millimetre in accordance with your requirements.

Couplings

Complement your system with suitable elbows and couplings.
A = Adjustable

Product overview Dimensions Data Sheets Data

Design covers Polyoxymethylene (POM)

Material Extruded aluminium profile
AL-diecast alloy
AL-diecast alloy

Assembly instructions MA-taraPLUS

Surface Powdercoating process

Load-bearing capacity

Principle	Many variants, closed system with easy access to system parts for light to medium loads.

Additional info	Simple alignment of the system
	Easy installation of the cables
	Special design due to the combination of rectangular and round tubes

Material/coating	System elements: Die-cast aluminum
	EN AN-44300 DIN EN 1706
	(GD Al Si 12/DIN 1725)
	Powder coating RAL 7040, window gray
	Optional: Special colors
	Suspension pipes: Fe
	Powder coating RAL 7035, light gray
	Optional: Special colors
	Bellows: PVC, RAL 7035, light gray

Cable routing	1,88" (48 mm) tube = 1,65" (42 mm) Ø
	2,75" (70 mm) tube = 2,44" (62 mm) Ø
	2,36"/1,57" (60/40 mm) tube = 2,12" x 1,33" (54 x 34 mm)

Ingress protection	IP 54 EN 60529

Torque for cutting ring screws	30 Nm = 3 kg/m
